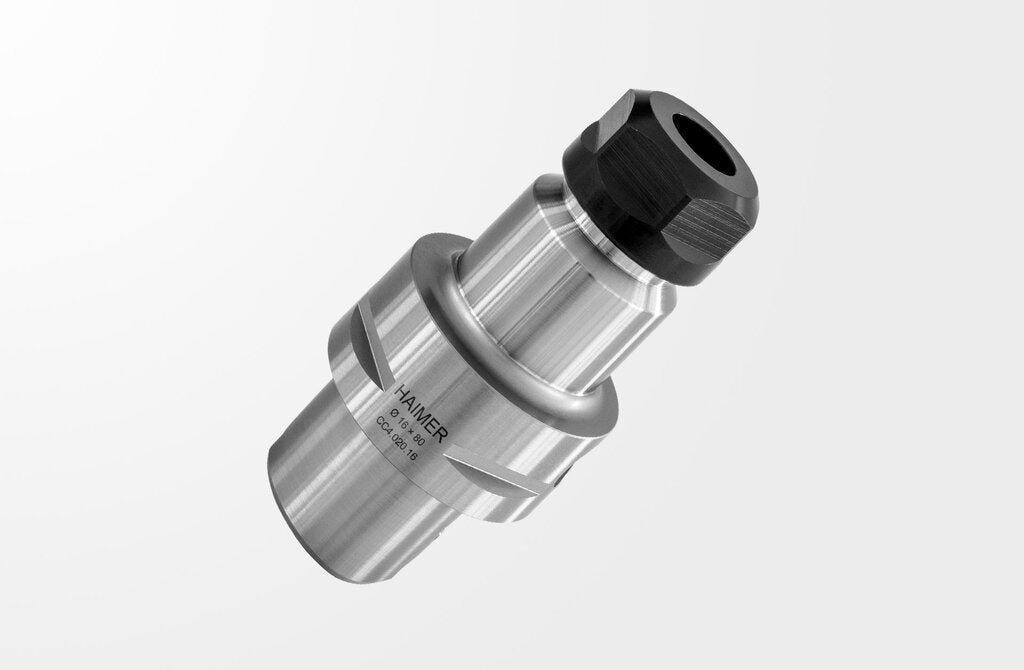

Haimer Collet Chuck ER 16, short, PSC 40 Tool Holder CC4.020.16 (0840494)

Haimer Part Number: CC4.020.16

HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Product Features:

- Collet Chuck Type ER ISO 26623-1 HAIMER PSC 40

- Chuck body fine balanced G2.5 at 25.000 rpm or U < 1 gmm

- All functional surfaces fine machined

- More accurate than DIN

- Compatible with Capto

- For clamping tools with cylindrical shank in collets according to ISO 15488 (previously DIN 6499). Available from ER16 to ER32. ISO 26623.

- Hardened 54 -2 HRC

- With locknut (balanced, with side coating for higher clamping forces)

-

Background Information:

PSC, or 'Polygonal Shank Coupling (ISO 26623)', holders are made to work with the Sandvik Capto interface without licensing the trademark name.

Company History:

Family-owned since 1977, HAIMER has grown from a precision parts specialist into a global tooling solutions supplier with operations across Europe, North America, and Asia.
