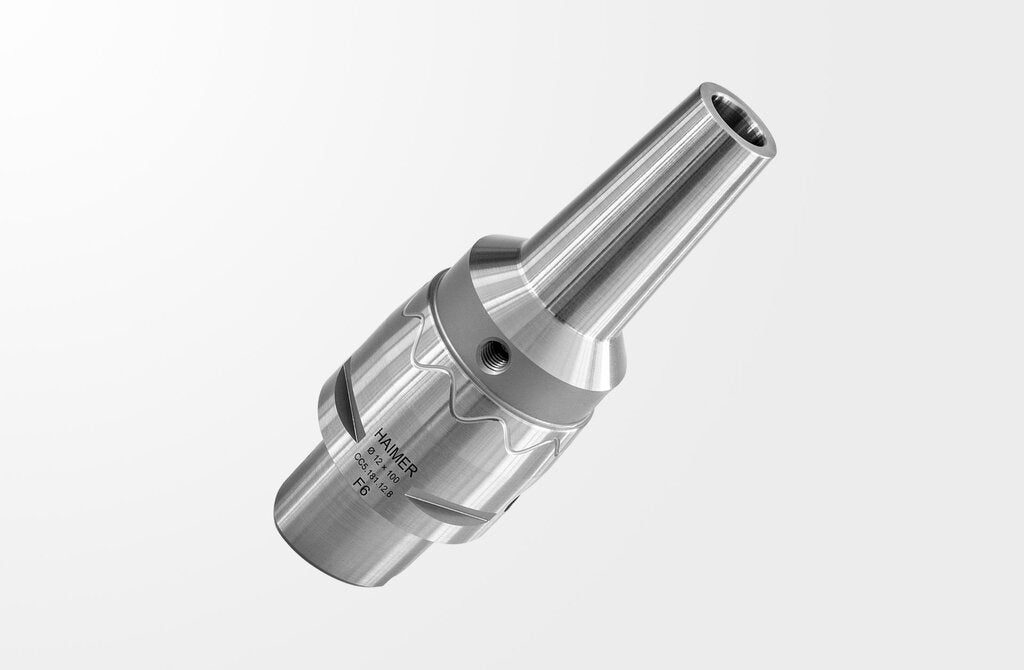

Haimer Power Mini Shrink Chuck, D = 8 mm, ZG100, PSC 50 Tool Holder CC5.181.08.8 (0840554)

Haimer Part Number: CC5.181.08.8

HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Product Features:

- Power Mini Shrink Chuck ISO 26623-1 PSC 50

- Chuck fine balanced G2.5 at 25.000 rpm

- All functional surfaces fine machined

- More accurate than DIN

- Compatible with Capto

- Shrink fit chuck suitable to all inductive shrink fit units.

- Power Mini Shrink Chuck is perfect for 5-axis-machining of parts, that are difficult to access. Therefore efficient milling is possible with an angled tool even at long protruding lengths.

- 3 mm wall thickness

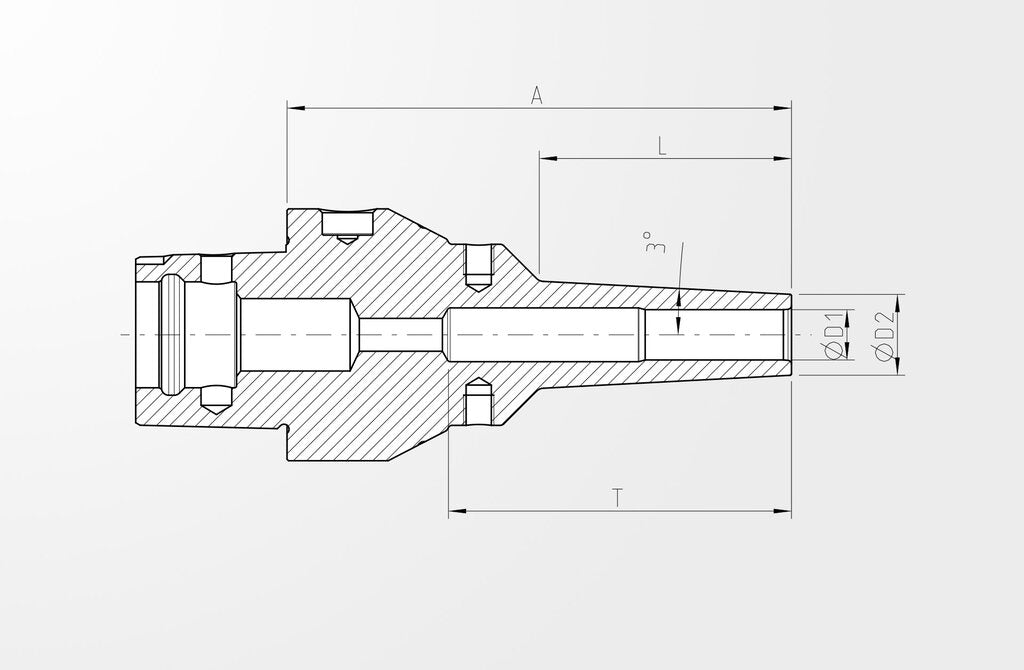

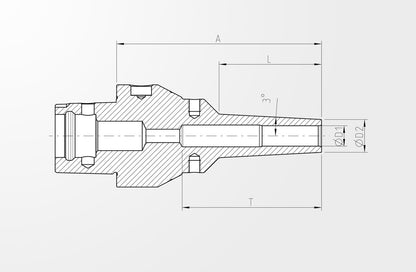

- 3° angle at the top

- With threaded holes in order to balance with balancing screws

- For solid carbide tools with shank tolerance h6

- Heat resistant hot-working steel

- Hardened 54 -2 HRC

- Heating and cooling sleeves are needed when shrinking on most shrink fit machines (see accessories). However, when using the Power Clamp i4.0 Sprint/Air or Nano machines with the motorised coil and scanner, sleeves are not necessary.

-

Background Information:

PSC, or 'Polygonal Shank Coupling (ISO 26623)', holders are made to work with the Sandvik Capto interface without licensing the trademark name.
