Haimer Grinding Wheel Adapter HSK-C50, Ø 20, L = 40 For Walter Tool Holder C50.165.20.4 (0840874)

Haimer Part Number: C50.165.20.4

HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Product Features:

- Walter grinding wheel adapter HSK-C50

- All function surfaces finely processed

- More accurate than DIN

- Basic body with balancing thread

- Weighted

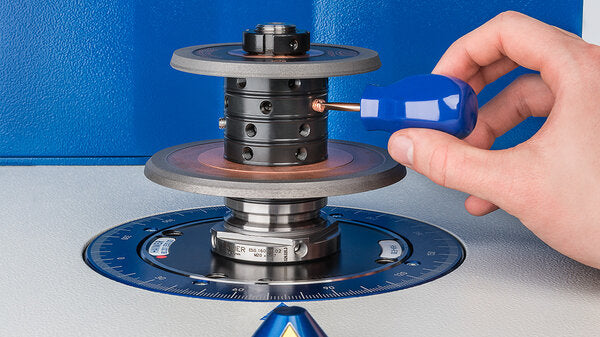

- Grinding wheel adapter HSK-C50 Ø 20 mm suitable for Walter tool grinding machines for spacers Ø 50 mm

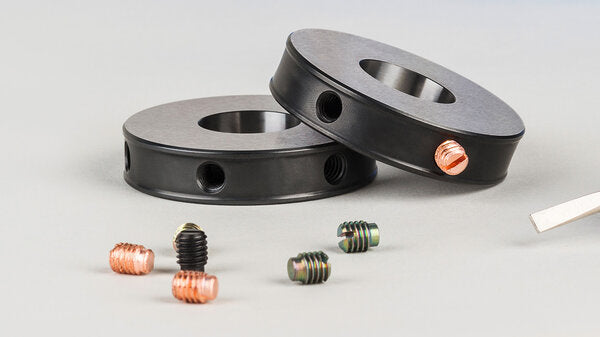

- Spacer pack, clamping nut, lock plate

-

Background Information:

The HSK system was invented in Germany in the 1990's and is now very commonly found in European machine tools and spindles. HSK stands for "Hohl Shaft Kegel" - "Hollow Shank Taper", and as the name implies this type of interface has a cavity running through it. Unlike classical 'pull-stud' designs (CAT, BT, SK etc), HSK uses an internal drawbar mechanism which results in clamping force increasing with rotational speed. Additionally, the form features dual contact; on an axial face and the cone (1:10), which puts HSK in the upper echelons of tool holder performance.

The HSK-C form is intended for non-automated loading and is shorter than other HSK forms due to the absence a holding groove. This type is intended for simple and small milling machines, router tables, etc. and any application where frequent or automatic tool changes are not required.

Company History:

Family-owned since 1977, HAIMER has grown from a precision parts specialist into a global tooling solutions supplier with operations across Europe, North America, and Asia.
