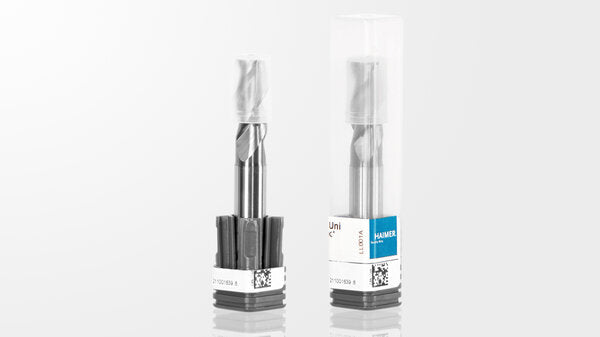

HAIMER MILL Alu Series - Chamfer, 2F, w/ Safe-Lock shank, w/ Coating C, Cutting Ø D1 = 16 mm F4002NNL1600CAC (0840945)

Haimer Part Number: F4002NNL1600CAC

HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Product Features:

- HAIMER MILL Alu Series - F4002NN Chamfer coated

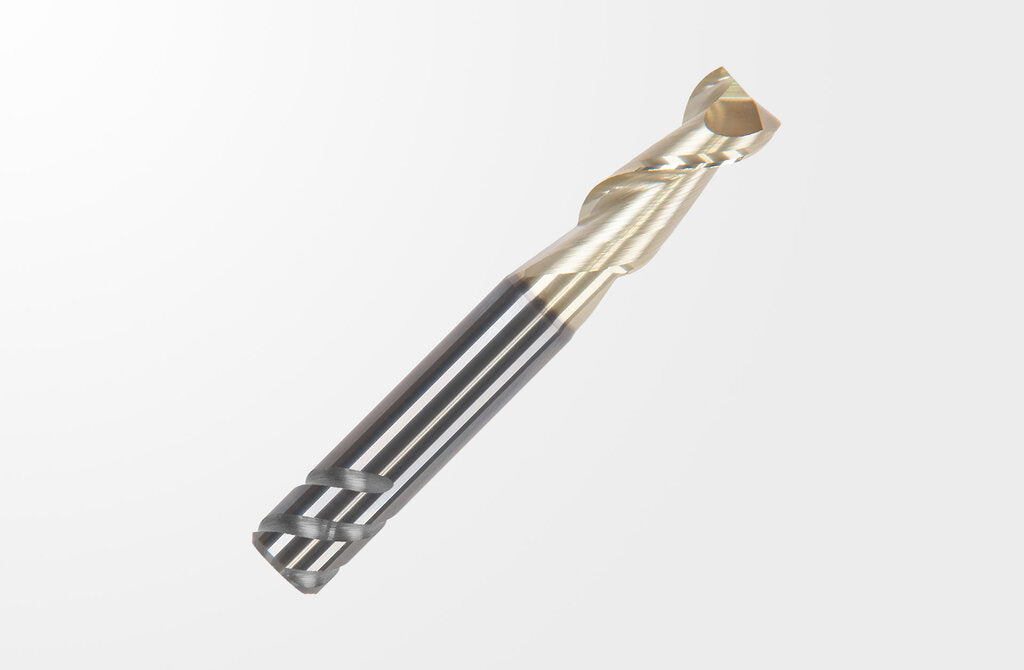

- Solid carbide end mill

- Shank tolerance h5

- Fine balanced < 1 gmm

- Runout < 5 µm (< 0.0002")

- Solid carbide end mill with Safe-Lock shank for roughing and finishing of aluminum.

- Shank tolerance: h5

- Coating for abrasive aluminum alloys

- Neck for higher cutting depth

- Center cutting

- Unequal Helix

- Runout < 5 µm

- Polished gullets for better chip removal

- For roughing and finishing of aluminum

- Designed for high cutting parameters

- Suitable for drilling, ramping and slotting

- Choose a tool holder with Cool Flash for optimal chip removal.

-

- Corner chamfer

- Teeth 2

- Helix angle 41/43°

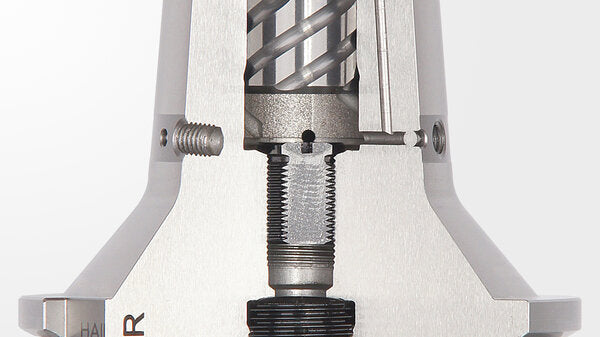

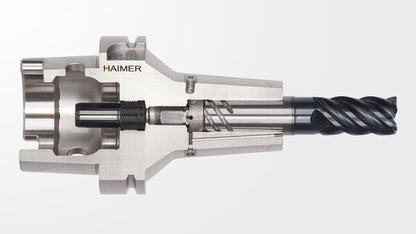

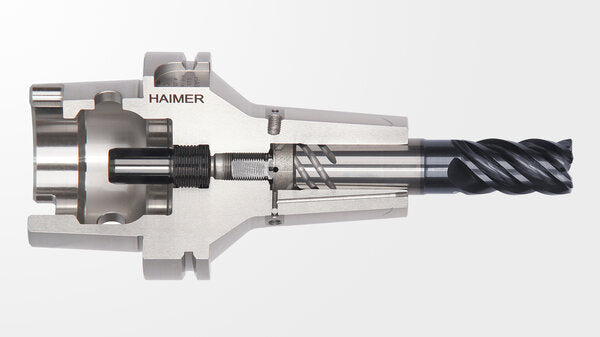

- Safe-Lock (S-λ)

- NF metals Aluminium and other non-ferrous metals, non ferrous materials

- Feed direction (Side milling, Ramping, Drilling)

- Ramping 45°

- Slotting

- Side milling

- Drilling

- Emulsion

- Cold air

- Dry machining

- Minimal lubrication

Company History:

Family-owned since 1977, HAIMER has grown from a precision parts specialist into a global tooling solutions supplier with operations across Europe, North America, and Asia.
