HAIMER MILL Power Series - Ball Nose, 2F, w/ Safe-Lock shank, Cutting Ø D1 = 4 mm V1002NNL0400RAA (0841142)

Haimer Part Number: V1002NNL0400RAA

HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.

This product is priced singly and comes in packs of 1.

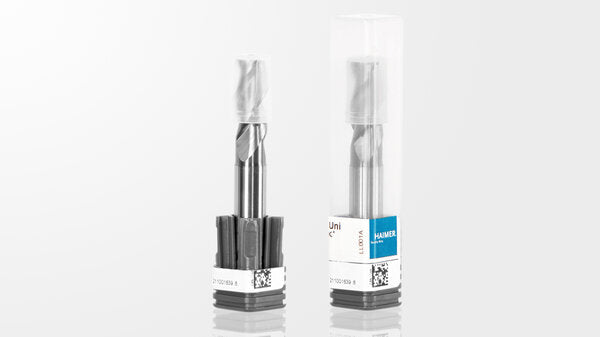

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Product Features:

- HAIMER MILL Power Series - V1002NN Ball Nose

- Solid carbide end mill

- Shank tolerance h5

- Fine balanced < 1 gmm

- Runout < 5 µm (< 0.0002")

- Solid carbide end mill for roughing and finishing with Safe-Lock shank.

- Shank tolerance: h5

- Neck for higher cutting depth

- Ball nose

- Unequal Helix

- Runout 5 µm (0.0002")

- BN profile tolerance 3 µm ( 0.00012")

- Polished gullets

- For almost all materials

- For roughing and finishing

- Suitable for profile milling

- We recommend our Power Mini Shrink Series for best surface finishing.

-

- Teeth 2

- Helix angle 32/34°

- Safe-Lock (S-λ)

- Steel All types of steel and cast steel, with the exception of steel with an austenitic structure

- Stainless steel Stainless austenitic steel and austenitic-ferritic steel and cast steel

- Cast iron Grey cast iron, cast iron with spheroidal graphite, malleable cast iron, cast iron with vermicular graphite

- High temperature alloys and titanium alloys Heat resisting special alloys based on iron, nickel and cobalt, titanium and titanium alloys

- NF metals Aluminium and other non-ferrous metals, non ferrous materials

- Hard materials Hardened steel, hardened cast iron materials, chilled cast iron

- Feed direction ball nose (Side milling, Ramping, Drilling)

- Ramping 45°

- Slotting

- Side milling ball nose

- Drilling

- 3D milling

- Emulsion

- Cold air

- Dry machining

- Minimal lubrication

Company History:

Family-owned since 1977, HAIMER has grown from a precision parts specialist into a global tooling solutions supplier with operations across Europe, North America, and Asia.
