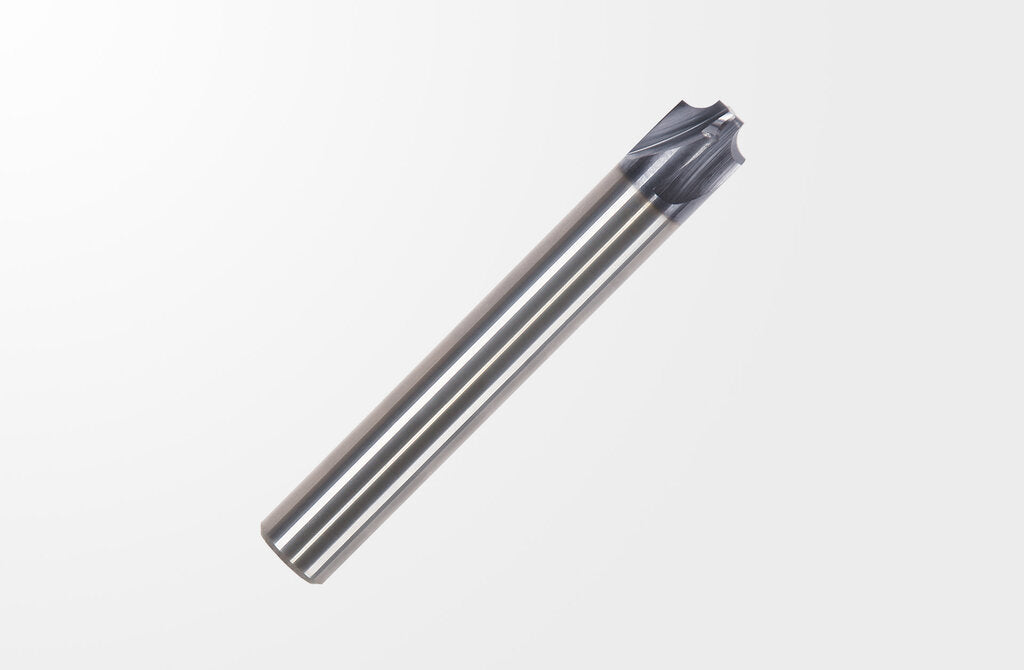

HAIMER MILL Power Series -Quadrant End Mill, 4F, w/ Straight shank, Radius = 1.5 mm E1014UNH1000R1.50DA (0841605)

Haimer Part Number: E1014UNH1000R1.50DA

HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Product Features:

- HAIMER MILL - E1014UN Quadrant End Mill

- Solid carbide end mill

- For contur rounding

- 5° tangential release

- Positive rake angle without profile displacement

- Chamfering end mill for chamfering of edges, grooves and holes

-

- Edge Radius

- Teeth 4

- Straight shank (HA)

- Steel All types of steel and cast steel, with the exception of steel with an austenitic structure

- Stainless steel Stainless austenitic steel and austenitic-ferritic steel and cast steel

- Cast iron Grey cast iron, cast iron with spheroidal graphite, malleable cast iron, cast iron with vermicular graphite

- High temperature alloys and titanium alloys Heat resisting special alloys based on iron, nickel and cobalt, titanium and titanium alloys

- NF metals Aluminium and other non-ferrous metals, non ferrous materials

- Hard materials Hardened steel, hardened cast iron materials, chilled cast iron

- Feed direction (Side milling, Ramping, Drilling)

- Rounding

- Emulsion

- Cold air

- Dry machining

- Minimal lubrication

Company History:

Family-owned since 1977, HAIMER has grown from a precision parts specialist into a global tooling solutions supplier with operations across Europe, North America, and Asia.
