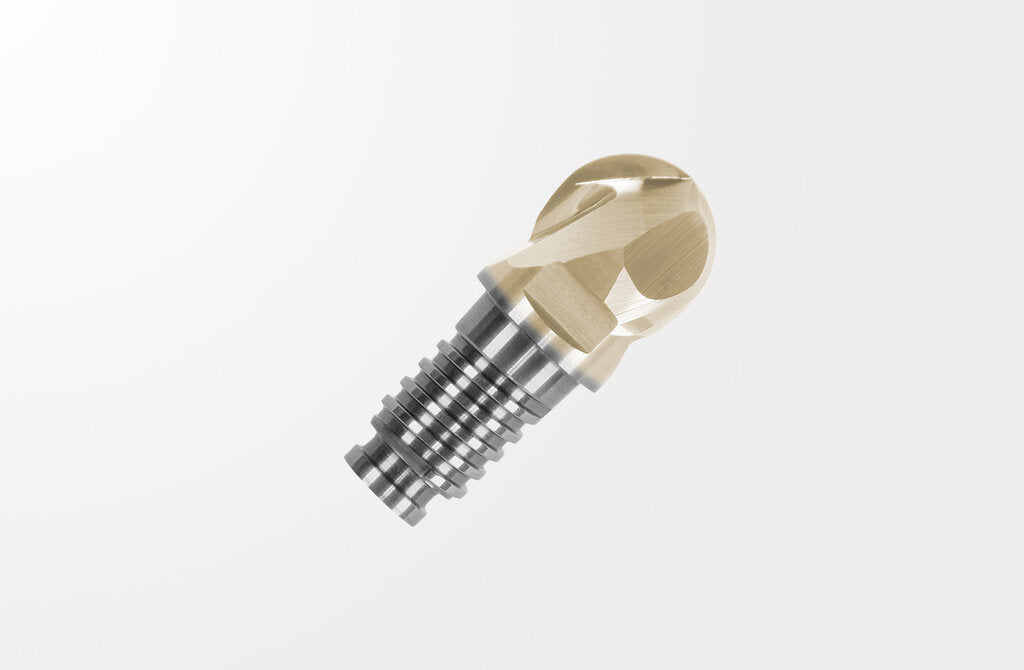

Duo-Lock HAIMER MILL Alu Series - Ball Nose, 2F, Short version, w/ Coating C, Cutting Ø D1 = 10 mm DL10V4002UK1000RDC (0841611)
Duo-Lock HAIMER MILL Alu Series - Ball Nose, 2F, Short version, w/ Coating C, Cutting Ø D1 = 10 mm DL10V4002UK1000RDC (0841611)
Couldn't load pickup availability
Haimer Part Number: DL10V4002UK1000RDC
HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

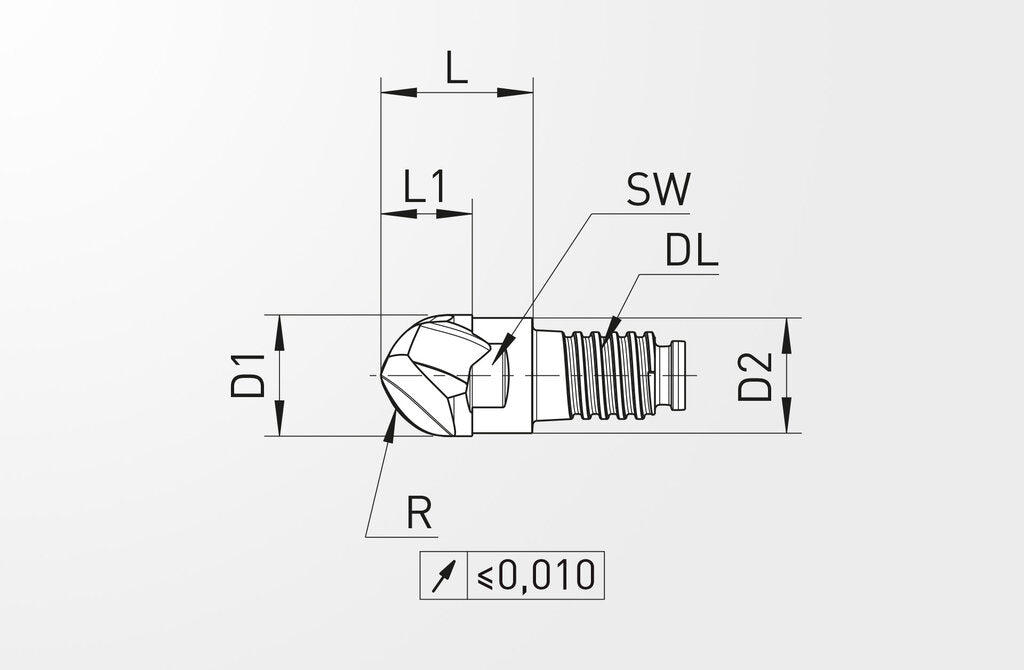

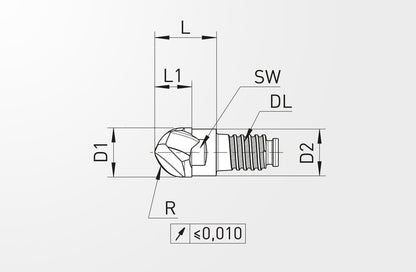

| Properties | ||
|---|---|---|
| Name | Duo-Lock HAIMER MILL Alu Series - Ball Nose, 2F, Short version, w/ Coating C, Cutting Ø D1 = 10 mm DL10V4002UK1000RDC | |
| EDP # | 0841611 | |
| Weight (1 pc.) | 0.5 oz | 14.0 g |
| Duo-Lock size | DL10 | |
| Cutting edge diameter / D1 | 0.3940" | 10.000 mm |
| D1 Tolerance | h9 | |
| Number of cutting edges / Z | 2 | |
| Length of cutting edge / L1 | 0.2950" | 7.500 mm |
| Head length / L | 0.4920" | 12.500 mm |
| Neck diameter / D2 | 0.3740" | 9.500 mm |
| Shank diameter / D | 0.2950" | 7.500 mm |
| Shanklength / LS | 0.4920" | 12.500 mm |
| Wrench size | 8 | |
| Type | L1 max, = 7,5 | |
| Helix angle | 32,5/34,5 | |
| HAIMER Material | D | |
| HAIMER Coating | C | |
| Torque | 20 | |
Product Features:
- Duo-Lock HAIMER MILL Alu Series - V4002UK Ball Nose Coated
- Modular milling head
- Fine balanced
- Center cutting
- Solid carbide milling head with Duo-Lock interface for maximum stability, load capacity and runout accuracy.
- Coating for abrasive aluminum alloys
- Neck for higher cutting depth
- Ball nose
- Polished flute and relief for better chip removal
- Best length repeatability
- For roughing and finishing of aluminum
- Designed for high cutting parameters
- Suitable for profile milling
-
- Teeth 2
- NF metals Aluminium and other non-ferrous metals, non ferrous materials
- Feed direction ball nose (Side milling, Ramping, Drilling)
- Ramping 45° ball nose
- Slotting ball nose
- Side milling ball nose
- 3D milling
- Emulsion
- Cold air
- Dry machining
- Minimal lubrication
