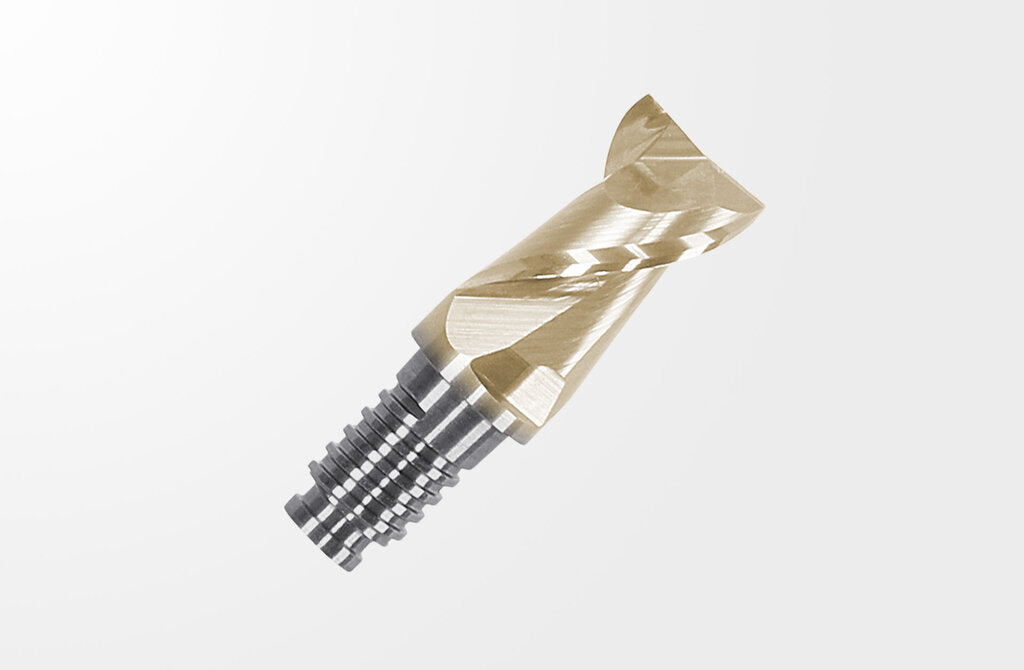

Duo-Lock HAIMER MILL Alu Series - Chamfer, 2F, Normal version, w/ Coating C, Cutting Ø D1 = 10 mm DL10F4002MN1000CDC (0841619)
Duo-Lock HAIMER MILL Alu Series - Chamfer, 2F, Normal version, w/ Coating C, Cutting Ø D1 = 10 mm DL10F4002MN1000CDC (0841619)
Couldn't load pickup availability
Haimer Part Number: DL10F4002MN1000CDC
HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Duo-Lock HAIMER MILL Alu Series - Chamfer, 2F, Normal version, w/ Coating C, Cutting Ø D1 = 10 mm DL10F4002MN1000CDC | |
| EDP # | 0841619 | |
| Weight (1 pc.) | 1.0 oz | 23.0 g |
| Duo-Lock size | DL10 | |

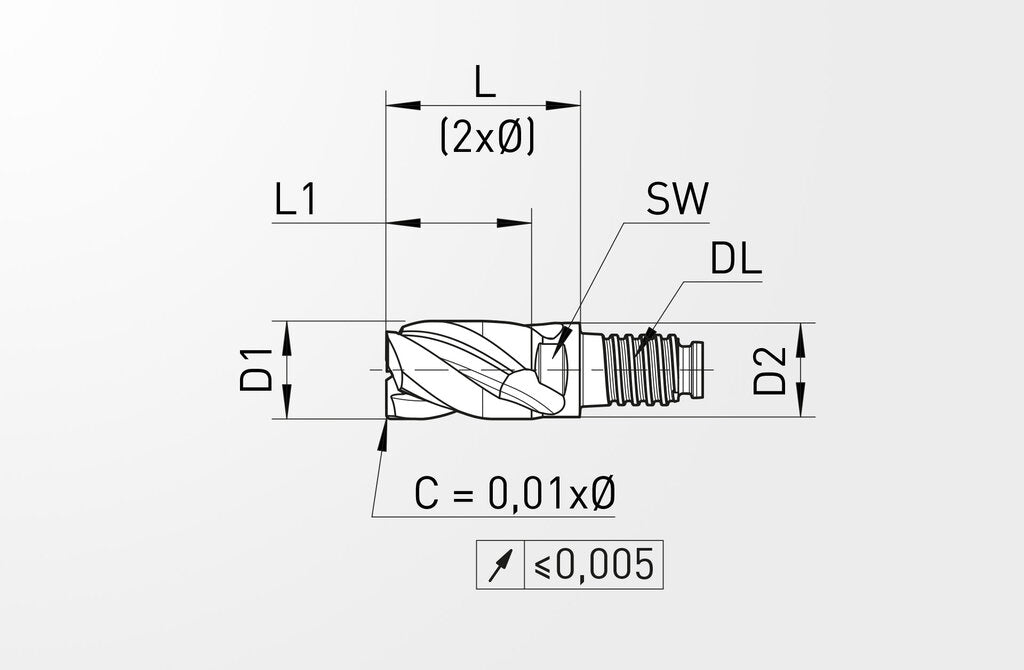

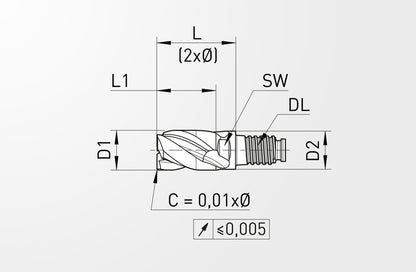

| Cutting edge diameter / D1 | 0.3940" | 10.000 mm |
| D1 Tolerance | h9 | |
| Number of cutting edges / Z | 2 | |
| Corner design | C | |
| Chamfer size / C | 0.0040" | 0.100 mm |
| Chamfer angle / W | 45 | |
| Length of cutting edge / L1 | 0.5910" | 15.000 mm |
| Head length / L | 0.7870" | 20.000 mm |
| Neck diameter / D2 | 0.3780" | 9.600 mm |
| Shank diameter / D | 0.2950" | 7.500 mm |
| Shanklength / LS | 0.4920" | 12.500 mm |
| Wrench size | 8 | |
| Type | L1 max, = 15 | |
| Helix angle | 41/43 | |
| HAIMER Material | D | |
| HAIMER Coating | C | |
| Torque | 20 | |
Product Features:
- Duo-Lock HAIMER MILL Alu Series - F4002MN Chamfer Coated
- Modular milling head
- Fine balanced
- Best length repeatability
- Solid carbide milling head with Duo-Lock interface for maximum stability, load capacity and runout accuracy.
- Coating for abrasive aluminum alloys
- Neck for higher cutting depth
- Center cutting
- Unequal helix
- Polished flute and relief
- For roughing and finishing of aluminum
- Designed for high cutting parameters
- Suitable for drilling, ramping and slotting
-
- Helix angle 41/43°
- Corner chamfer
- Teeth 2
- NF metals Aluminium and other non-ferrous metals, non ferrous materials
- Feed direction (Side milling, Ramping, Drilling)
- Ramping 45°
- Slotting ball nose
- Side milling
- Drilling
- Emulsion
- Cold air
- Dry machining
