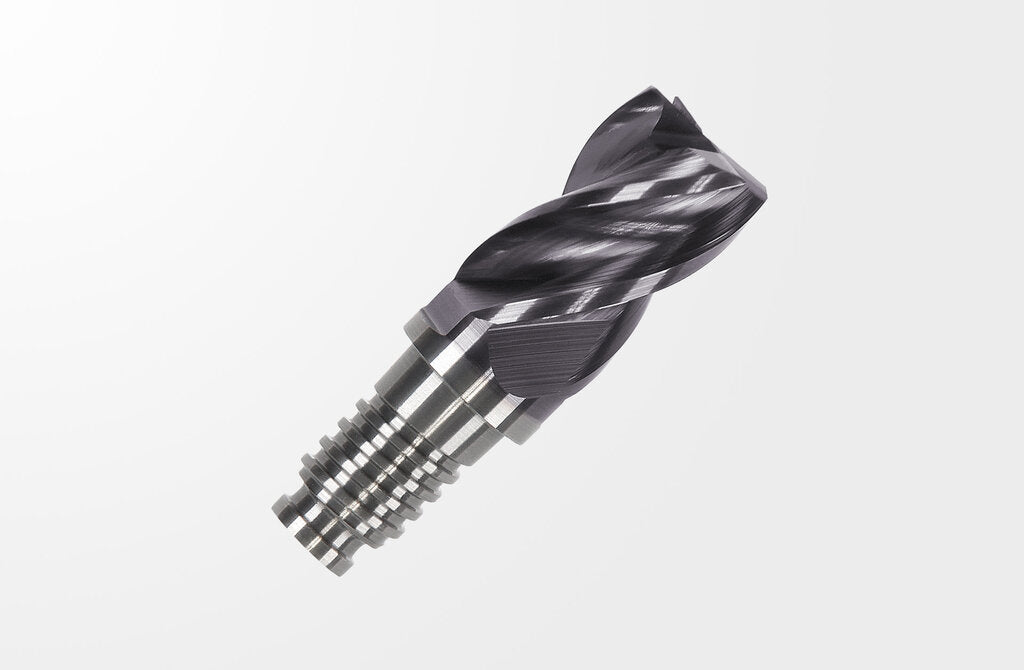

Duo-Lock HAIMER MILL Power Series - Chamfer, 4F, Normal version, w/ Coating A, Cutting Ø D1 = 10 mm DL10F1004MN1000CDA (0841637)
Duo-Lock HAIMER MILL Power Series - Chamfer, 4F, Normal version, w/ Coating A, Cutting Ø D1 = 10 mm DL10F1004MN1000CDA (0841637)
Couldn't load pickup availability
Haimer Part Number: DL10F1004MN1000CDA
HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

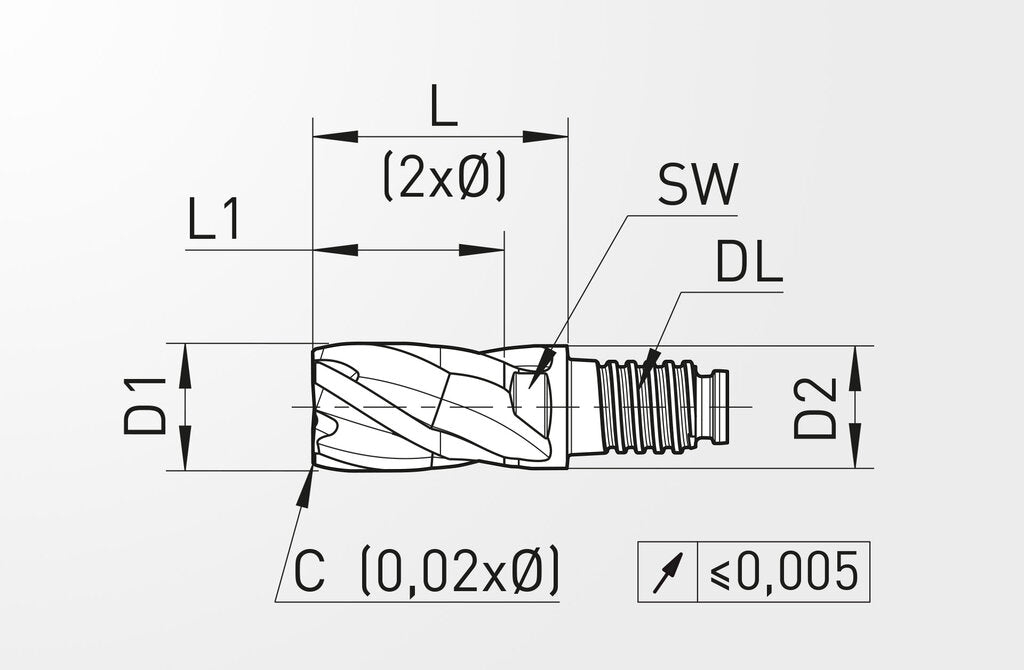

| Properties | ||
|---|---|---|
| Name | Duo-Lock HAIMER MILL Power Series - Chamfer, 4F, Normal version, w/ Coating A, Cutting Ø D1 = 10 mm DL10F1004MN1000CDA | |
| EDP # | 0841637 | |
| Weight (1 pc.) | 1.0 oz | 23.0 g |
| Duo-Lock size | DL10 | |
| Cutting edge diameter / D1 | 0.3940" | 10.000 mm |
| Cooling | without cooling | |
| D1 Tolerance | f9 | |
| Number of cutting edges / Z | 4 | |
| Corner design | C | |
| Chamfer size / C | 0.0080" | 0.200 mm |
| Chamfer angle / W | 45 | |
| Length of cutting edge / L1 | 0.5910" | 15.000 mm |
| Head length / L | 0.7870" | 20.000 mm |
| Neck diameter / D2 | 0.3780" | 9.600 mm |
| Shank diameter / D | 0.2950" | 7.500 mm |
| Shanklength / LS | 0.4920" | 12.500 mm |
| Wrench size | 8 | |
| Type | L1 max, = 15 | |
| Helix angle | 37/39 | |
| HAIMER Material | D | |
| HAIMER Coating | A | |
| Torque | 20 | |
Product Features:
- Duo-Lock HAIMER MILL Power Series - F1004MN Chamfer Coated
- Modular milling head
- Particularly suitable for Long overhang and labile clamping
- Best results with DL-HM extension
- Solid carbide milling head with Duo-Lock interface for maximum stability, load capacity and runout accuracy.
- Neck for higher cutting depth
- Center cutting
- Unequal cutting edge
- Unequal helix
- Best length repeatability
- Polished flute and relief
- For almost all materials
- Particularly suitable for long overhang and labile clamping
- Suitable for profile milling
- Best results with solid carbide Duo-Lock extension
-
- Helix angle 36,5/38,5°
- Corner chamfer 45°
- Teeth 4
- Steel All types of steel and cast steel, with the exception of steel with an austenitic structure
- Stainless steel Stainless austenitic steel and austenitic-ferritic steel and cast steel
- Cast iron Grey cast iron, cast iron with spheroidal graphite, malleable cast iron, cast iron with vermicular graphite
- High temperature alloys and titanium alloys Heat resisting special alloys based on iron, nickel and cobalt, titanium and titanium alloys
- NF metals Aluminium and other non-ferrous metals, non ferrous materials
- Hard materials Hardened steel, hardened cast iron materials, chilled cast iron
- Feed direction (Side milling, Ramping, Drilling)
- Ramping 3-5°
- Slotting
- Side milling
- Emulsion
- Cold air
- Dry machining
- Minimal lubrication
