Duo-Lock HAIMER MILL - Chamfer, 4F, Short version, Cutting Ø D1 = 16 mm DL16F2004UK1600CDA (0841767)
Duo-Lock HAIMER MILL - Chamfer, 4F, Short version, Cutting Ø D1 = 16 mm DL16F2004UK1600CDA (0841767)
Couldn't load pickup availability
Haimer Part Number: DL16F2004UK1600CDA
HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

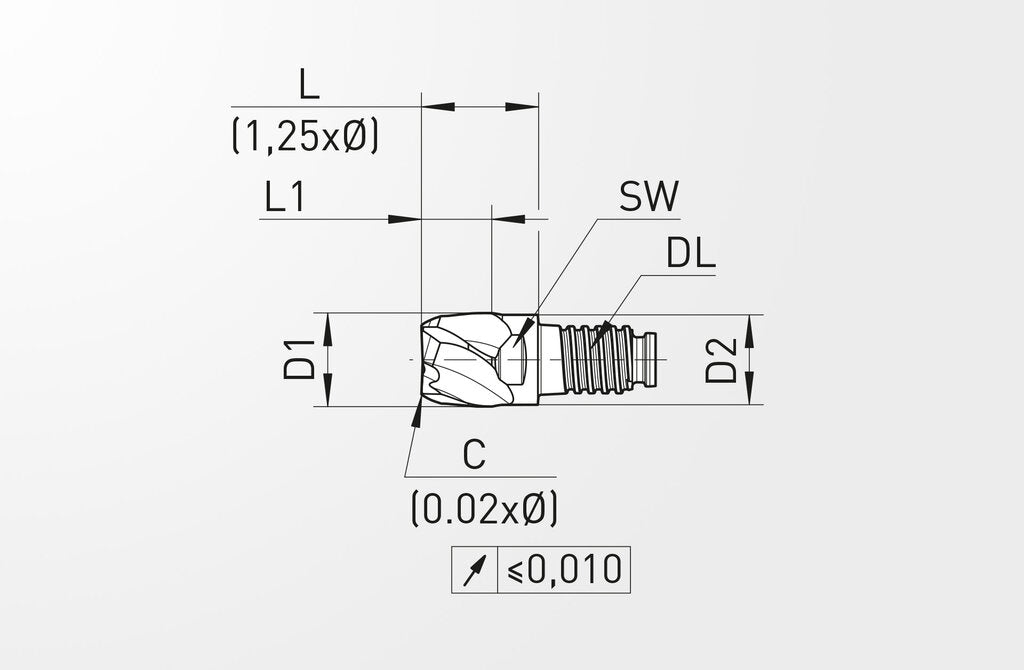

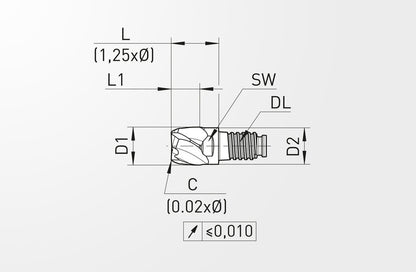

| Properties | ||
|---|---|---|
| Name | Duo-Lock HAIMER MILL - Chamfer, 4F, Short version, Cutting Ø D1 = 16 mm DL16F2004UK1600CDA | |
| EDP # | 0841767 | |
| Weight (1 pc.) | 2.0 oz | 59.0 g |
| Chamfer size / C | 0.0130" | 0.320 mm |
| Corner design | C | |
| Cutting edge diameter / D1 | 0.6300" | 16.000 mm |
| Duo-Lock size | DL16 | |
| HAIMER Coating | A | |
| Head length / L | 0.7870" | 20.000 mm |
| Length of cutting edge / L1 | 0.4720" | 12.000 mm |
| Number of cutting edges / Z | 4 | |
| Shank diameter / D | 0.4530" | 11.500 mm |
Product Features:
- Duo-Lock HAIMER MILL - F2004UK Chamfer
- Modular milling head
- Fine balanced
- Best length repeatability
- Solid carbide milling head with Duo-Lock interface for maximum stability, load capacity and runout accuracy.
- Neck for higher cutting depth
- Center cutting
- Unequal helix
- Unequal cutting edge
- For almost all materials
- For roughing and finishing
- For ramping, drilling and slotting
-
- Helix angle 31/33°
- Corner chamfer 45°
- Teeth 4
- Steel All types of steel and cast steel, with the exception of steel with an austenitic structure
- Stainless steel Stainless austenitic steel and austenitic-ferritic steel and cast steel
- Cast iron Grey cast iron, cast iron with spheroidal graphite, malleable cast iron, cast iron with vermicular graphite
- High temperature alloys and titanium alloys Heat resisting special alloys based on iron, nickel and cobalt, titanium and titanium alloys
- NF metals Aluminium and other non-ferrous metals, non ferrous materials
- Hard materials Hardened steel, hardened cast iron materials, chilled cast iron
- Feed direction (Side milling, Ramping, Drilling)
- Ramping 45°
- Slotting
- Side milling
- Drilling
- Emulsion
- Cold air
- Dry machining
- Minimal lubrication
