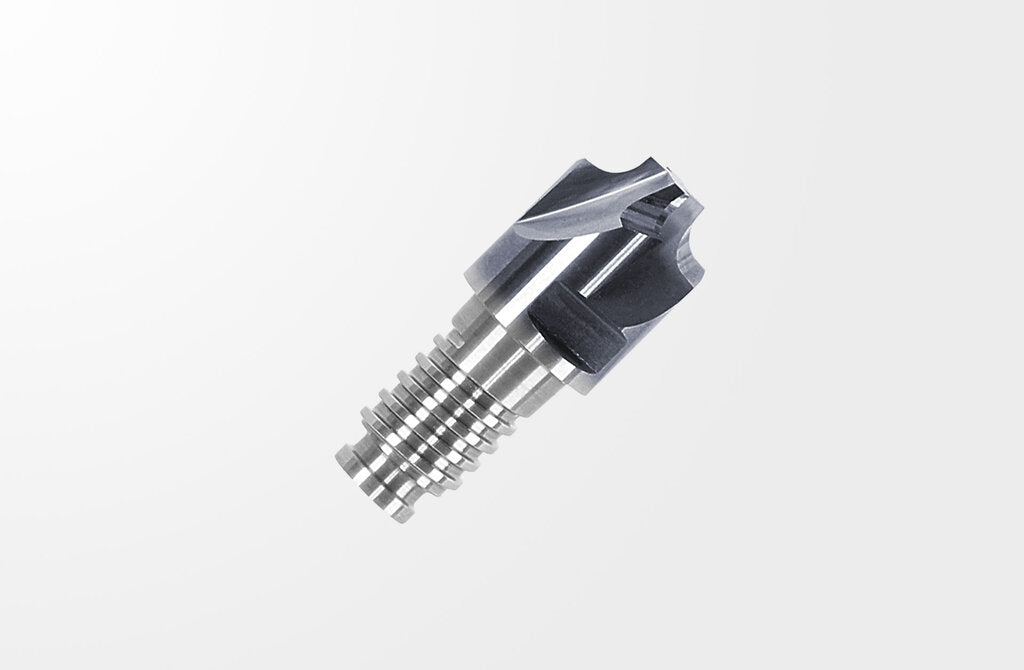

Duo-Lock HAIMER MILL - Quadrant End Mill, 4F, Short version, Radius = 3 mm DL12E1014UK1200R3.00DA (0841922)

Haimer Part Number: DL12E1014UK1200R3.00DA

HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Product Features:

- Duo-Lock HAIMER MILL - E1014UK Quadrant End Mill

- Modular milling head

- Fine balanced

- Best length repeatability

- Solid carbide milling head with Duo-Lock interface for maximum stability, load capacity and runout accuracy.

- 5° tangential release

- Positive rake angle without profile displacement

- For contur rounding

-

- Edge Radius

- Teeth 4

- Steel All types of steel and cast steel, with the exception of steel with an austenitic structure

- Stainless steel Stainless austenitic steel and austenitic-ferritic steel and cast steel

- Cast iron Grey cast iron, cast iron with spheroidal graphite, malleable cast iron, cast iron with vermicular graphite

- High temperature alloys and titanium alloys Heat resisting special alloys based on iron, nickel and cobalt, titanium and titanium alloys

- NF metals Aluminium and other non-ferrous metals, non ferrous materials

- Hard materials Hardened steel, hardened cast iron materials, chilled cast iron

- Feed direction (Side milling, Ramping, Drilling)

- Rounding

- Emulsion

- Cold air

- Dry machining

- Minimal lubrication
