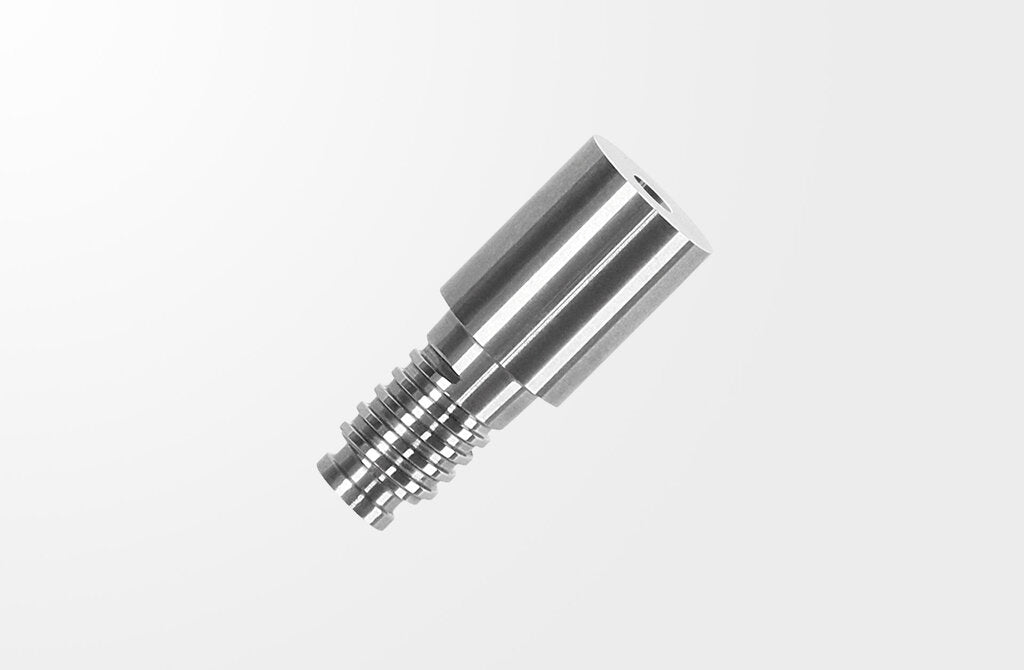

Haimer Duo-Lock Blank - Short version, w/ Central Coolant bore, Without Across flats, Ø D1 = 10 mm Raw Material RODL10-D10HA0125-0001KZ (0841966)
Haimer Duo-Lock Blank - Short version, w/ Central Coolant bore, Without Across flats, Ø D1 = 10 mm Raw Material RODL10-D10HA0125-0001KZ (0841966)
Couldn't load pickup availability
Haimer Part Number: RODL10-D10HA0125-0001KZ
HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

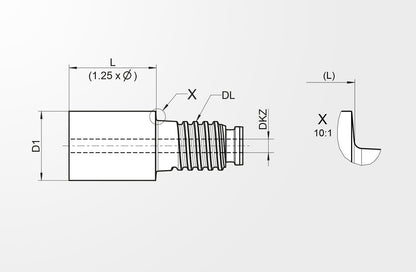

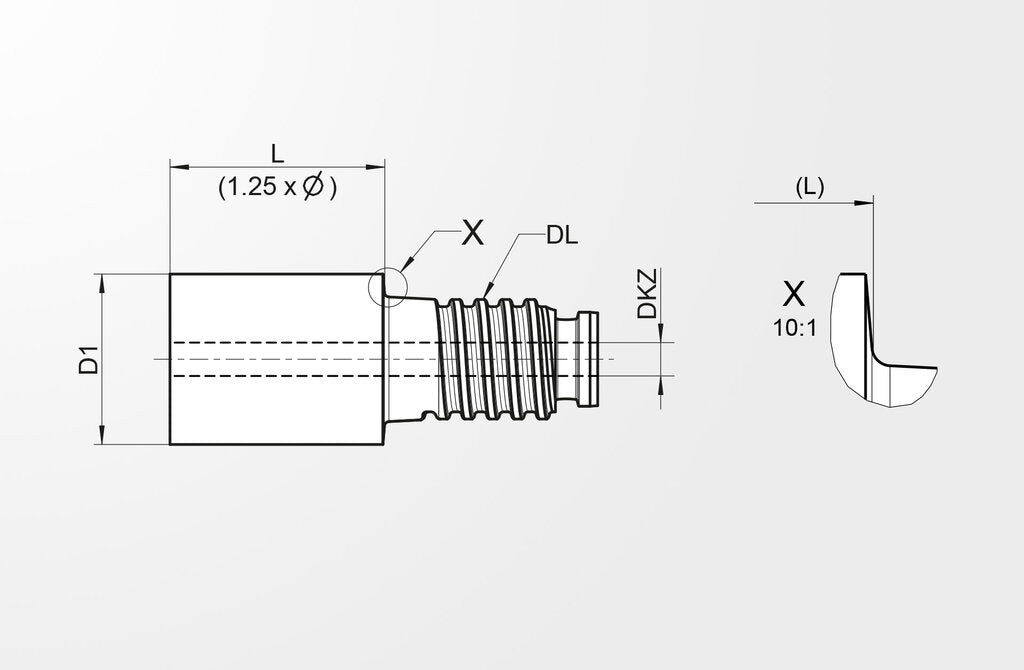

| Properties | ||
|---|---|---|
| Name | Haimer Duo-Lock Blank - Short version, w/ Central Coolant bore, Without Across flats, Ø D1 = 10 mm Raw Material RODL10-D10HA0125-0001KZ | |
| EDP # | 0841966 | |
| Weight (1 pc.) | 1.0 oz | 18.0 g |
| Duo-Lock size | DL10 | |
| D1 Tolerance | h6 | |
| Length / L | 0.4920" | 12.500 mm |
| HAIMER Material | D | |
| Diameter 1 / D1 | 0.3940" | 10.000 mm |
| Torque | 20 | |
| Diameter cooling / DKZ | 0.0790" | 2.000 mm |
Product Features:
- Duo-Lock Blanks with cooling bore central - Short
- Short version - without across flats
- High length repeatability
- HF10: Fine grain carbide, 10% cobalt
- Central cooling
- Solid carbide milling head blanks for the production of own geometries with the Duo-Lock-interface for maximum stability, load capacity and runout accuracy.
- Measuring devices on request
-
