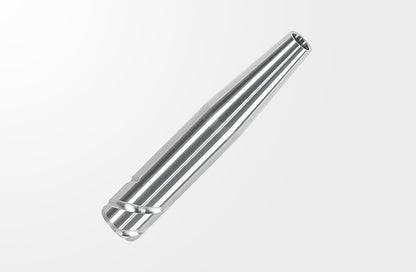

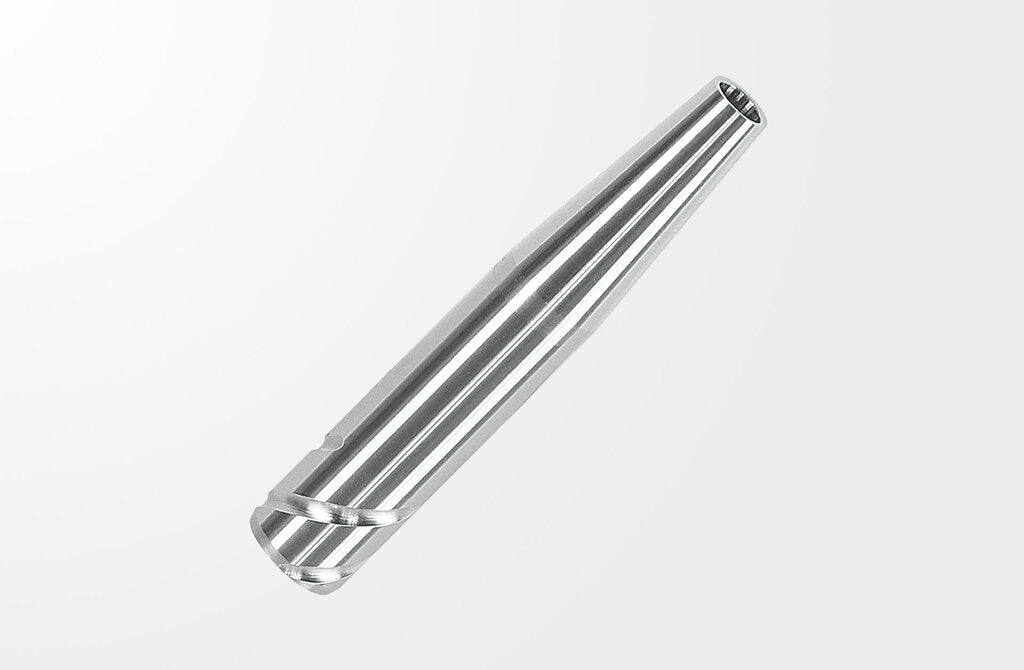

Haimer Duo-Lock Extension, conical, short, w/ Safe-Lock, Ø D1 = 5/8'' Tool Holder 75.5/8Z0.DL12 (0842140)
Haimer Duo-Lock Extension, conical, short, w/ Safe-Lock, Ø D1 = 5/8'' Tool Holder 75.5/8Z0.DL12 (0842140)
Couldn't load pickup availability
Haimer Part Number: 75.5/8Z0.DL12
HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Haimer Duo-Lock Extension, conical, short, w/ Safe-Lock, Ø D1 = 5/8'' Tool Holder 75.5/8Z0.DL12 | |
| EDP # | 0842140 | |
| Weight (1 pc.) | 5.0 oz | 136 g |

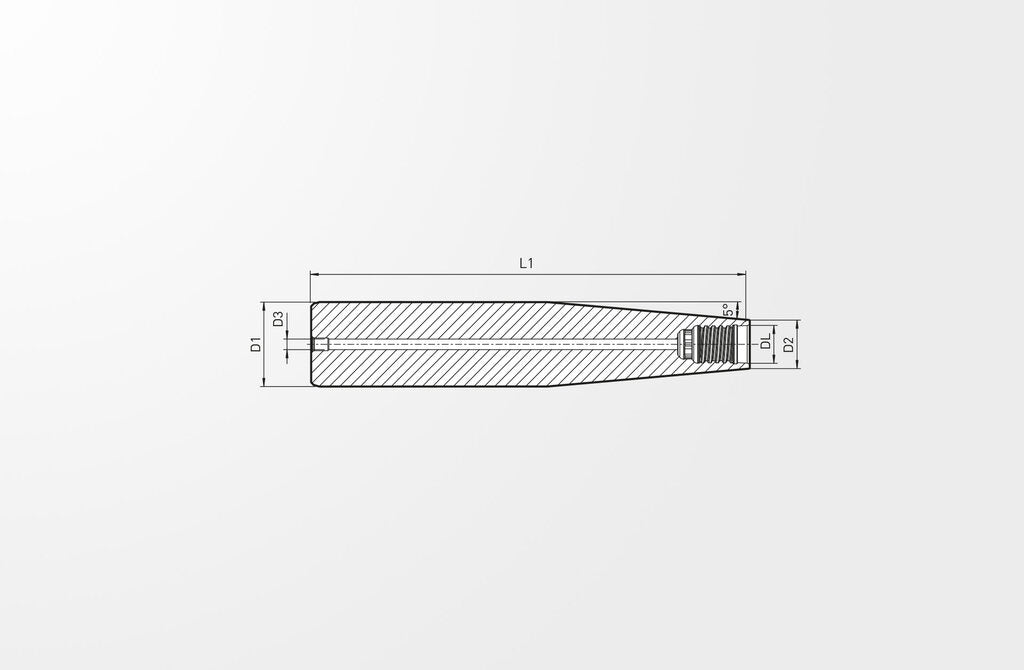

| Clamping diameter / D1 | 0.6250" | 15.875 mm |
| Length 1 / L1 | 3.2680" | 83.000 mm |
| Size Duo-Lock / DL | DL12 | |
Product Features:
- Duo-Lock Extension Conical - Short - Steel
- Shank tolerance h6
- Inner coolant bore
- With Safe-Lock as standard
- Shank tolerance: h6
- With inner coolant bore
- Also available:
- Extensions with coating - for perfect shrinking in and out even at high forces during machining
-
Company History:
Family-owned since 1977, HAIMER has grown from a precision parts specialist into a global tooling solutions supplier with operations across Europe, North America, and Asia.
