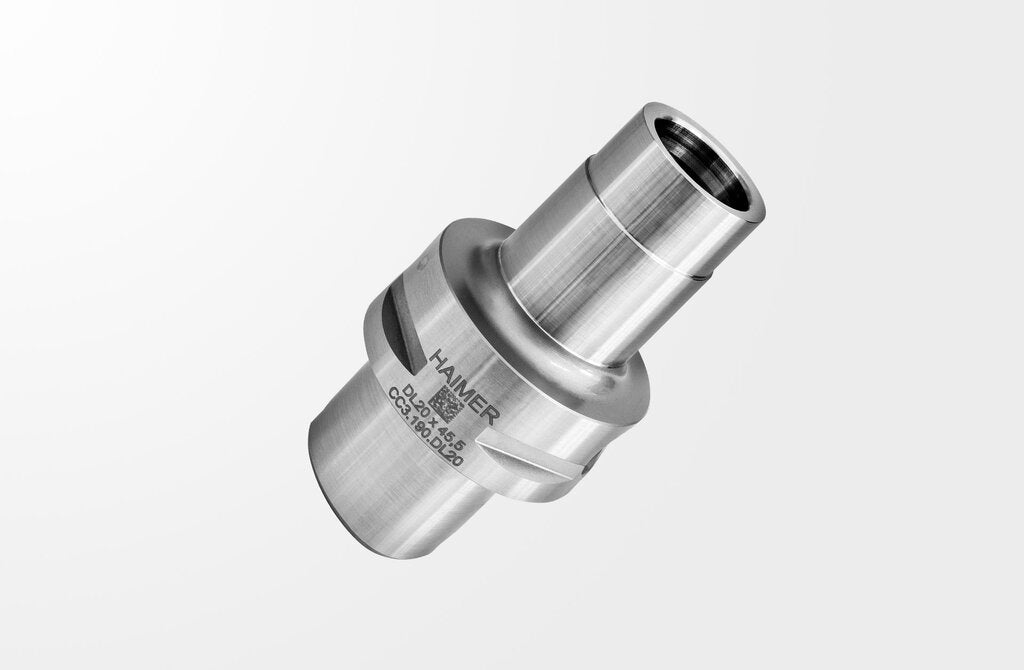

Haimer Duo-Lock Monoblock holder, DL20, PSC 30 CC3.190.DL20 (0842305)
Haimer Duo-Lock Monoblock holder, DL20, PSC 30 CC3.190.DL20 (0842305)
Couldn't load pickup availability
Haimer Part Number: CC3.190.DL20
HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Haimer Duo-Lock Monoblock holder, DL20, PSC 30 CC3.190.DL20 | |
| EDP # | 0842305 | |
| Weight (1 pc.) | 8.0 oz | 236 g |

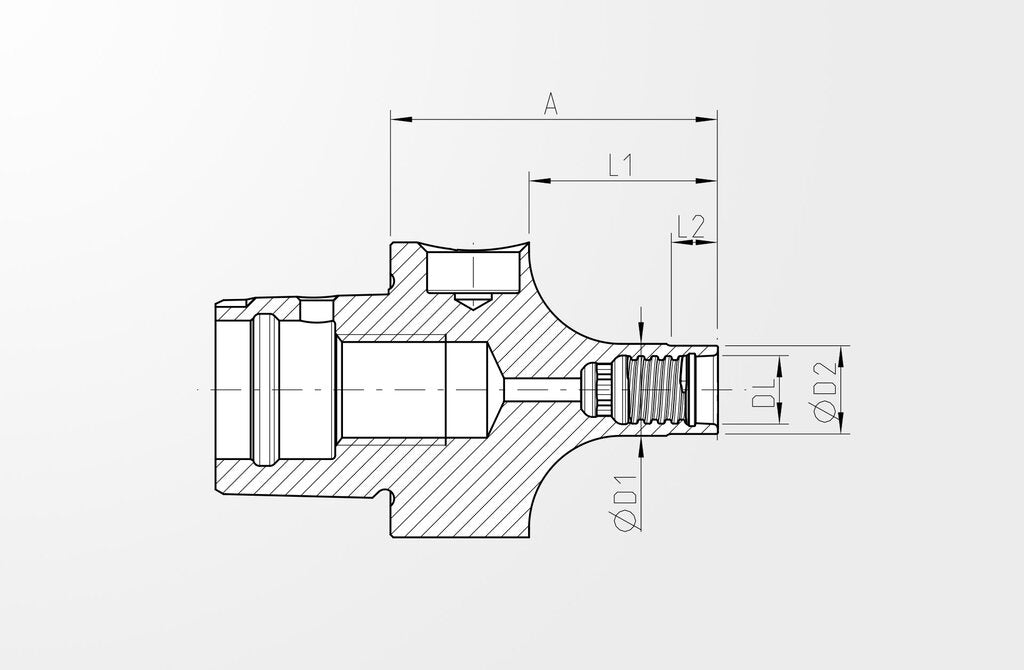

| Diameter 1 / D1 | 0.7870" | 20.000 mm |
| Interface | PSC32 | |
| Length 1 / L1 | 1.2010" | 30.500 mm |
| Length A / A | 1.7910" | 45.500 mm |
| Size | DL20 | |
Product Features:
- Duo-Lock Monoblock holder ISO 26623-1 PSC 32
- Chuck body fine balanced G2.5 at 25.000 rpm or U < 1 gmm
- All functional surfaces fine machined
- More accurate than DIN
- Compatible with Capto
- Duo-Lock Monoblock holder for direct clamping of the Duo-Lock milling head. Perfectly suitable for milling with short overhang.
- All holders incl. inner cooling
- Hardened 54 -2 HRC
-
Background Information:
PSC, or 'Polygonal Shank Coupling (ISO 26623)', holders are made to work with the Sandvik Capto interface without licensing the trademark name.
Company History:
Family-owned since 1977, HAIMER has grown from a precision parts specialist into a global tooling solutions supplier with operations across Europe, North America, and Asia.
