Haimer Part Number: PC101-I01-C00-EU
HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties |
|---|
| Name |

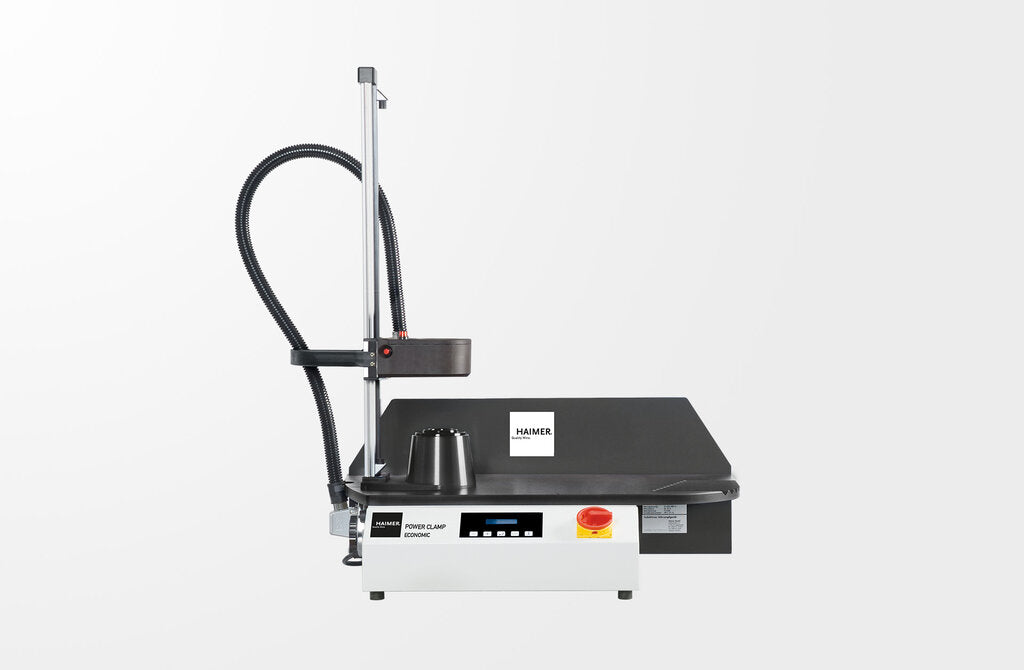

Haimer Shrink Fit Unit Power Clamp Economic Machinery PC101-I01-C00-EU |
| EDP # |
0842452 |
| Weight (1 pc.) |
1799.0 oz |
51002 g |
| Connection |
3 x 400-480 Volt, 16 A, 13 kW |
| Power |
13 |
| max. length Shrink fit chuck |
20.0790" |
510.000 mm |
| Tools |
Solid carbide and HSS |
| Width / B |
33.0710" |
840.000 mm |
| Depth / T |
23.6220" |
600.000 mm |
| Height / H |
38.1890" |
970.000 mm |
Product Features:
- Shrink fit machine Power Clamp Economic
- Single chuck version
- Shrinking of solid carbide and HSS from Ø 3 - 32 mm

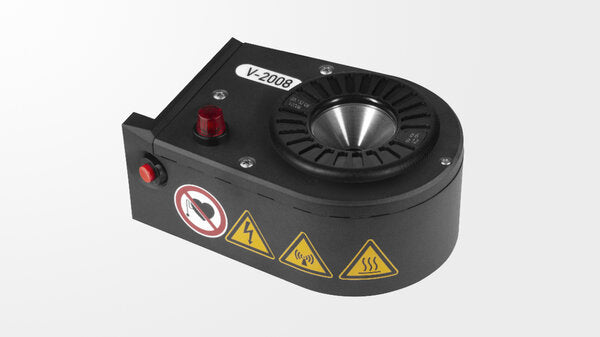

- V2008 coil with interchangeable stop discs
- High performance shrink fit machine for all tools.
- With standard coil V2008 and interchangable stop discs
- Without cooling
- Tools: Solid carbide and HSS from Ø 3 - 32 mm
- Power: 13 kW

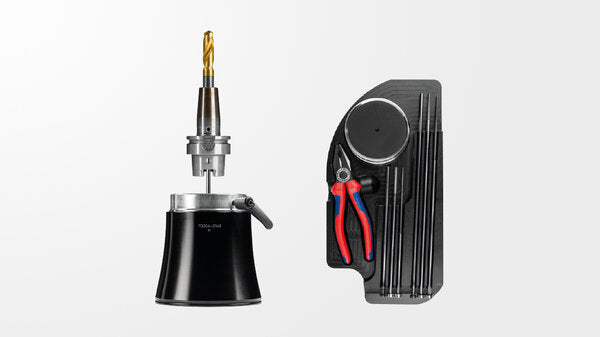

- Shrink fit machine Power Clamp Economic; 1 base holder; 1 chuck support
-
Company History:
Family-owned since 1977, HAIMER has grown from a precision parts specialist into a global tooling solutions supplier with operations across Europe, North America, and Asia.
