Haimer Part Number: PC120-I21-C10-US
HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties |
|---|
| Name |
Haimer Shrink Fit Unit Power Clamp Profi Plus NG |
| EDP # |
0842464 |
| Weight (1 pc.) |
4059.0 oz |
115067 g |
| Connection |
3 x 400-480 Volt, 32 A, 20 kW |
| Power |
20 |
| max. length Shrink fit chuck |
22.4410" |
570.000 mm |
| Tools |
Solid carbide and HSS |
| Width / B |
39.3700" |
1000.000 mm |
| Depth / T |
23.6220" |
600.000 mm |
| Height / H |
38.1890" |
970.000 mm |
Product Features:

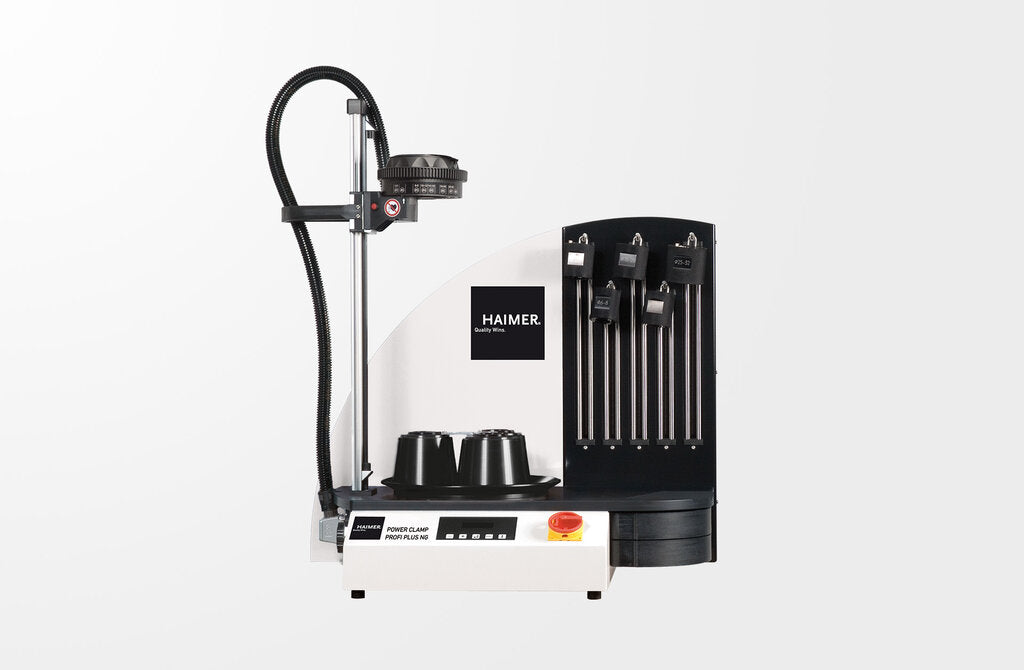

- Shrink fit machine Power Clamp Profi Plus NG
- Rotary table with 3 stations
- Shrinking of solid carbide and HSS from Ø 3 - 50 mm

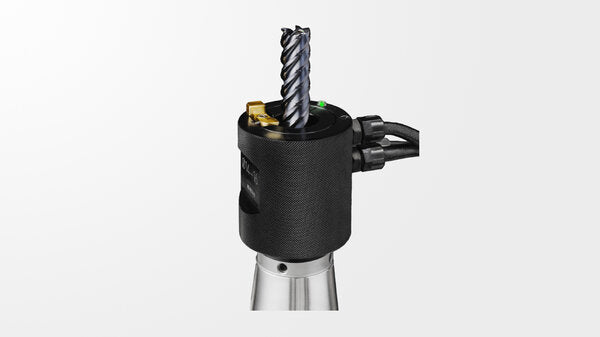

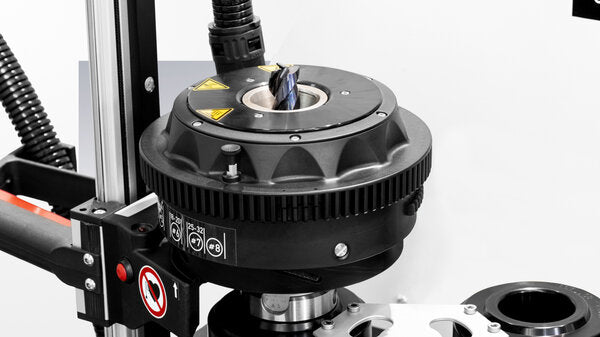

- Intelligent NG coil
- Integrated contact cooling
- High performance shrink fit machine for all tools.
- With intelligent NG coil (13 kW)
- With integrated contact cooling
- Optional with second coil for Ø 40 - 50 mm (20 kW)
- Tools: Solid carbide and HSS from Ø 3 - 50 mm
- Power: 20 kW
- Shrink fit machine Power Clamp Profi Plus NG; Cooling Manager; 1 chuck support for rotary table
-
