Haimer Shrink Fit Unit Power Clamp Nano NG i4.0 Machinery PC406-I42-C20-US (0842531)
Haimer Shrink Fit Unit Power Clamp Nano NG i4.0 Machinery PC406-I42-C20-US (0842531)
Couldn't load pickup availability
Haimer Part Number: PC406-I42-C20-US
HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Haimer Shrink Fit Unit Power Clamp Nano NG i4.0 Machinery PC406-I42-C20-US | |
| EDP # | 0842531 | |
| Weight (1 pc.) | 3632.0 oz | 102975 g |
| Connection | 3 x 400-480 Volt, 16 A, 13 kW | |
| Power | 13 | |
| max. length Shrink fit chuck | 9.8430" | 250.000 mm |
| Tools | Solid carbide and HSS | |
| Width / B | 31.4960" | 800.000 mm |
| Depth / T | 33.8580" | 860.000 mm |
| Height / H | 26.3780" | 670.000 mm |
Product Features:

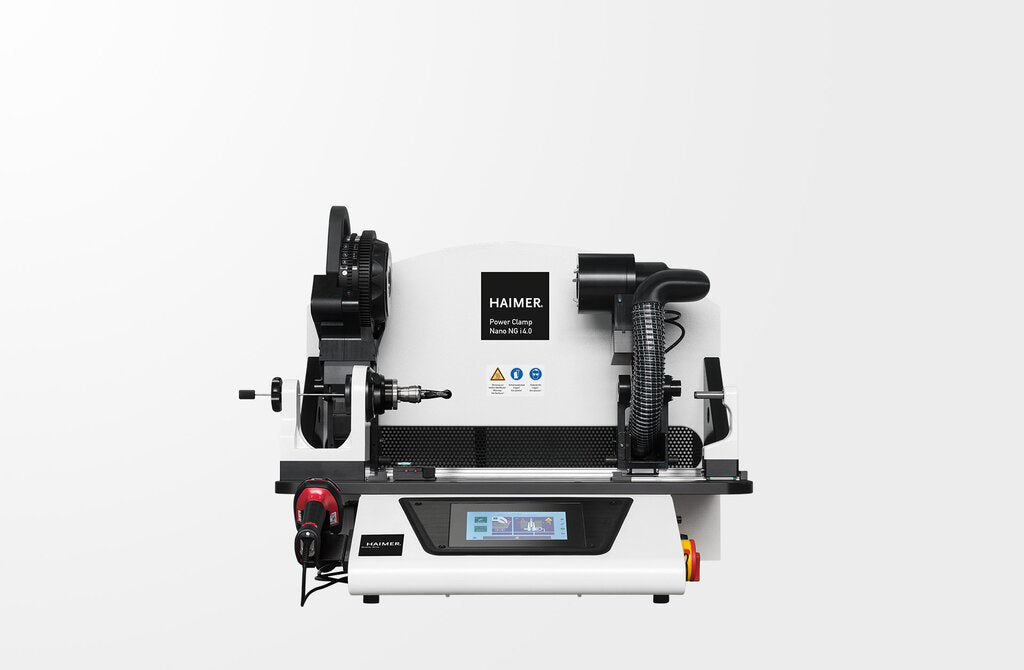

- Shrink fit machine Power Clamp Nano NG i4.0
- Industry 4.0-ready
- 7"-Touch-Display and new intuitive software
- Nano air cooling
- Intelligent 13 kW motor coil VS32-M
- Horizontal shrinking
- The HAIMER Power Clamp Nano NG i4.0 is your entry into the world of micro machining with the help of digital data communications.
- The Nano NG i4.0 was specifically developed for small interfaces up to SK40/HSK-A63. The horizontal design ensures easy handling especially at tools with smaller diameters. By its modular system construction HAIMER Power Clamp Nano NG i4.0 fullfils the various customer requirements very well.
- Network-compatible and industry 4.0-ready for communication in the shopfloor

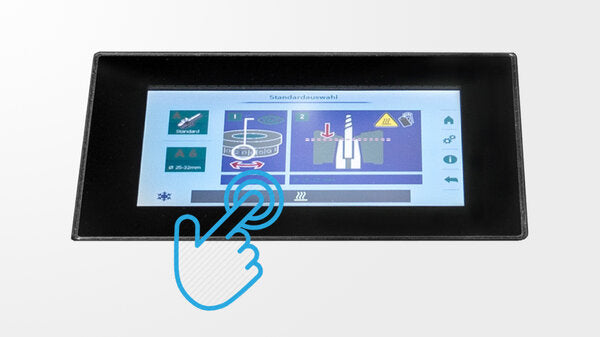

- 7"-Touch-Display and new intuitive software for simplified usability
- Nano air cooling up to outer diam. 32 mm
- Scanner to readout shrinking parameters from Data-Matrix codes for easiest automatic shrinking
- Innovative handling for smallest tools by horizontal shrinking

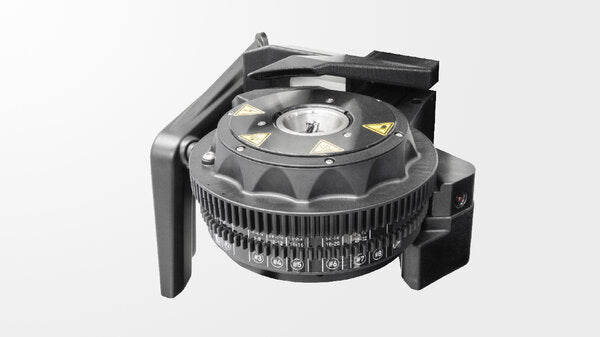

- Coil with handle and start button for ergonomic working
- Ideal for shrink fit chucks with an extra slim geometry, solid carbide and HSS
- Tools: solid carbide and HSS from Ø 3 - 32 mm

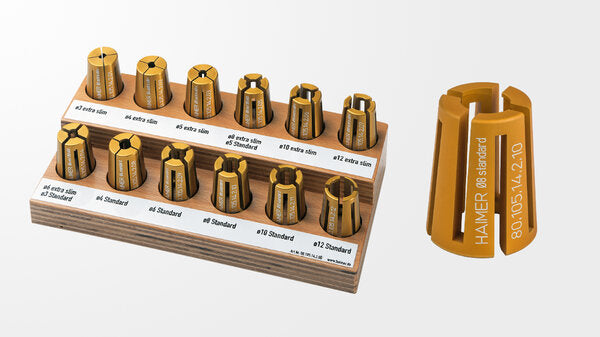

- Tool-support for HSK 25 - HSK 63 and SK/BT 30/40

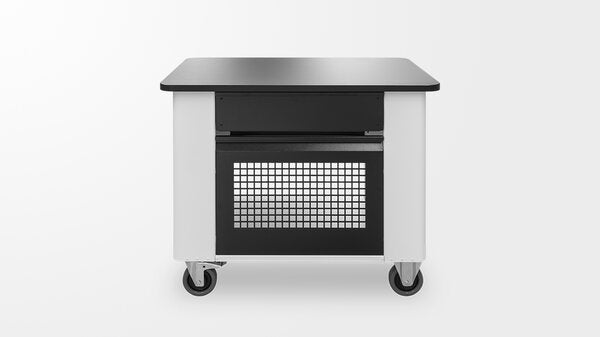

- Modular system with upgrade is possible
- Mains voltage: 3 x 400-480 V, 16 A
- Power: 13 kW
- Air consumption min. 4 bar
-
Company History:
Family-owned since 1977, HAIMER has grown from a precision parts specialist into a global tooling solutions supplier with operations across Europe, North America, and Asia.
