Haimer Part Number: PC400-I21-C10-US
HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties |
|---|
| Name |
Haimer Shrink Fit Unit Power Clamp Comfort i4.0 Machinery PC400-I21-C10-US |
| EDP # |
0842532 |
| Weight (1 pc.) |
4384.0 oz |
124280 g |
| Connection |
3 x 400-480 Volt, 16 A, 13 kW |
| Power |
13 |
| max. length Shrink fit chuck |
22.4410" |
570.000 mm |
| Tools |
Solid carbide and HSS |
| Width / B |
33.4650" |
850.000 mm |
| Depth / T |
25.9840" |
660.000 mm |
| Height / H |
38.1890" |
970.000 mm |
Product Features:

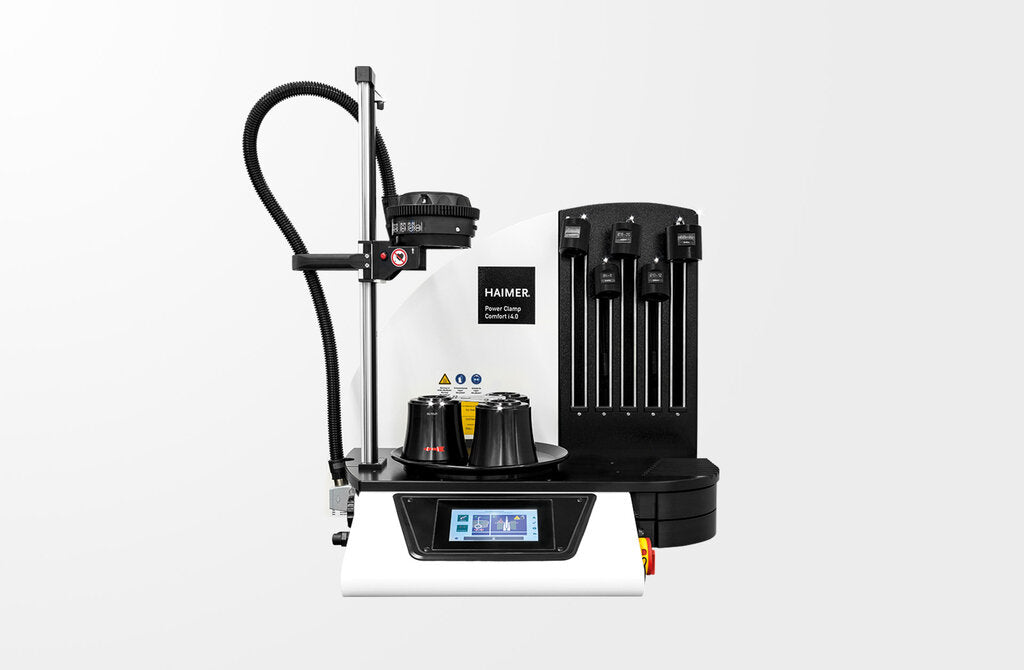

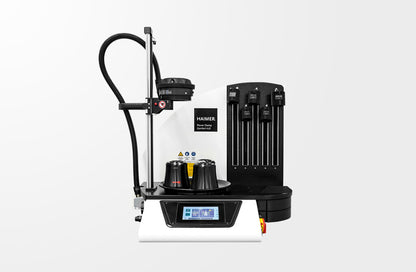

- Shrink fit machine Power Clamp Comfort i4.0
- i4.0 shrink fit machine for ambitious
- Industry 4.0-ready
- 7"-Touch-Display and new intuitive software
- Rotary table with 3 stations

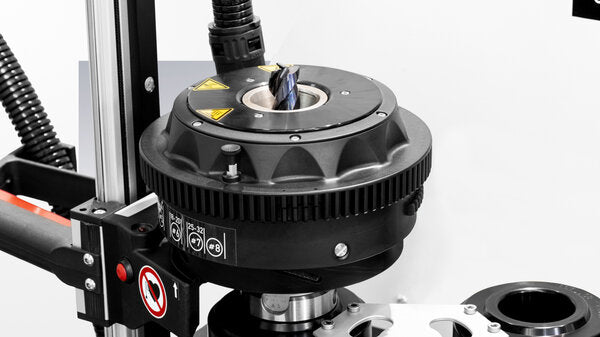

- Intelligent NG coil
- Integrated contact cooling
- With the new Power Clamp i4.0 series HAIMER is setting new standards regarding digital connectivity and communication in the world of shrink technology.

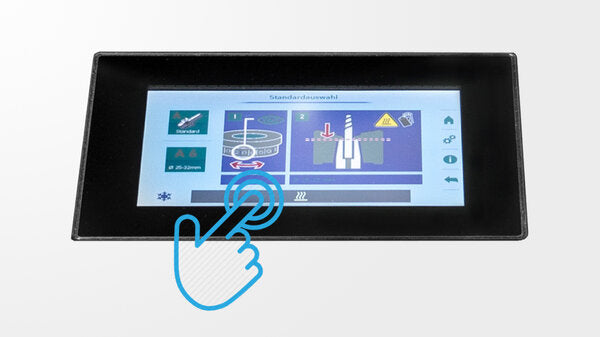

- A 7"-Touch-Display and a new intuitive software provide simplified usability.

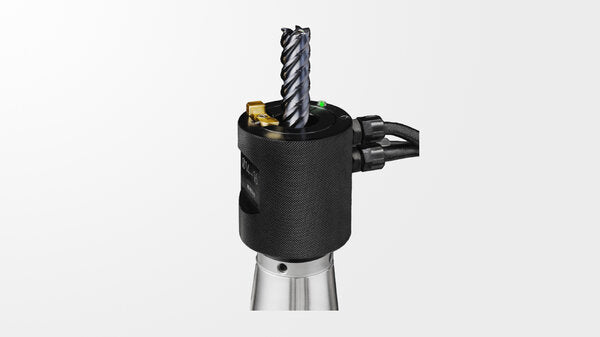

- The Power Clamp Comfort i4.0 can be optionally upgraded with an HD coil for shrinking of Heavy Duty Shrink Chucks up to Ø 50 mm.
- Industry 4.0-ready due to scanner connection
- Scanner to readout shrinking parameters from tool holders (Data-Matrix code) optional
- TME Cooling System (optional)
- Tools: Solid carbide and HSS from Ø 3 - 32 mm
- Mains voltage: 3 x 400 - 480 V, 16 A
- Power: 13 kW

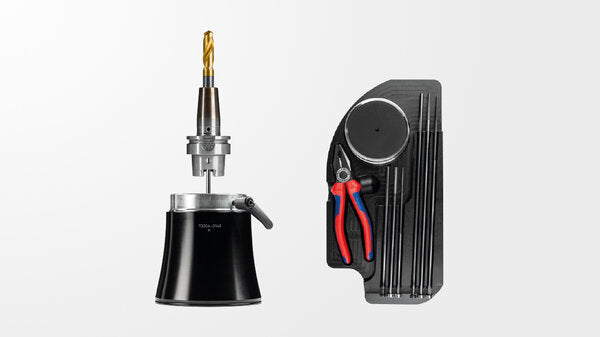

- Shrink fit machine Power Clamp Comfort i4.0; Cooling Manager; 1 chuck support for rotary table, craning boxes
-
