Haimer Shrink Fit Unit Power Clamp Sprint i4.0 Machinery PC408-I22-C21-US (0842542)
Haimer Shrink Fit Unit Power Clamp Sprint i4.0 Machinery PC408-I22-C21-US (0842542)
Couldn't load pickup availability
Haimer Part Number: PC408-I22-C21-US
HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Haimer Shrink Fit Unit Power Clamp Sprint i4.0 Machinery PC408-I22-C21-US | |
| EDP # | 0842542 | |
| Weight (1 pc.) | 21741.0 oz | 616364 g |
| Connection | 3 x 400 - 480 Volt , 16 A | |
| Power | 13 | |
| max. length Shrink fit chuck | 21.0630" | 535.000 mm |
| Tools | Solid carbide and HSS | |
| Width / B | 52.7560" | 1340.000 mm |
| Depth / T | 37.8740" | 962.000 mm |
| Height / H | 100.7870" | 2560.000 mm |
Product Features:

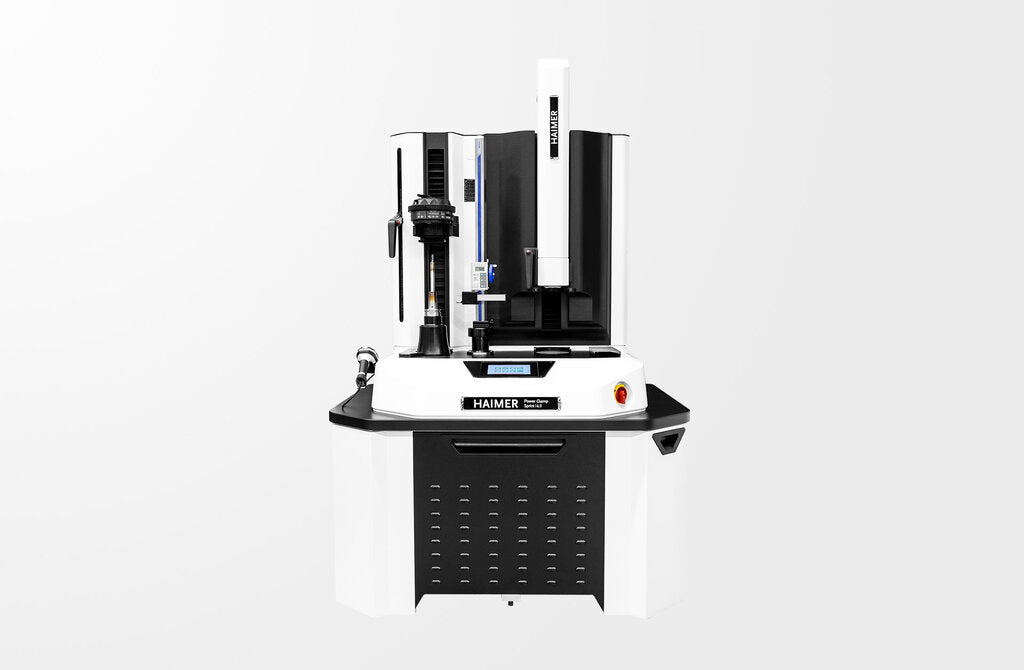

- Shrink fit machine Power Clamp Sprint i4.0
- Industry 4.0-ready

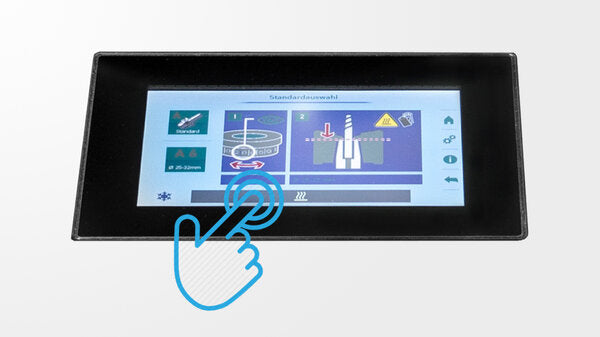

- 7"-Touch-Display and new intuitive software
- Smooth and clean cooling of all kind of shrik fit chucks and shrink fit collets regardless of the outside contour
- Intelligent cooling system with temperature control
- Ergonomic shrink station in new, premium quality industry design with integrated cooling for all kind of cutting tools (solid carbide and HSS) in record time.
- 7"-Touch-Display and new intuitive software for simplified usability
- Network-compatible and industry 4.0-ready for communication in the shopfloor
- Intelligent NG coil
- Smooth and clean cooling of all kind of shrink fit chucks and shrink fit
- collets regardless of the outside contour by air nozzles and drizzle
- Temperature control for optimized and safe cooling

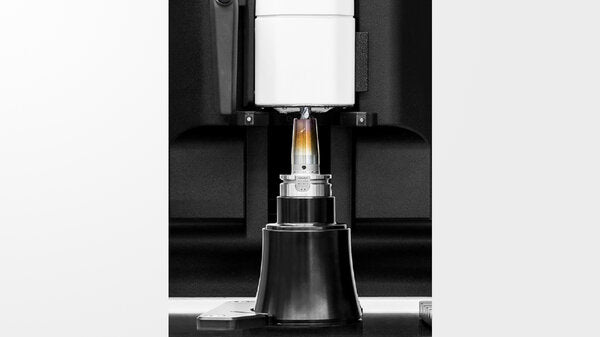

- Centered move-down of the cooling body onto the tool holder
- No damage at the edges of the cutting tool
- Length presetting (optional)
- Integrated drawer in base cabinet
- Scanner to readout shrinking parameters from Data-Matrix codes for easiest automatic shrinking (optional)
- Tools: solid carbide and HSS from Ø 3 - 32 mm
- Mains voltage: 3 x 400 - 480 V, 16 A
- Power: ca. 13 kW

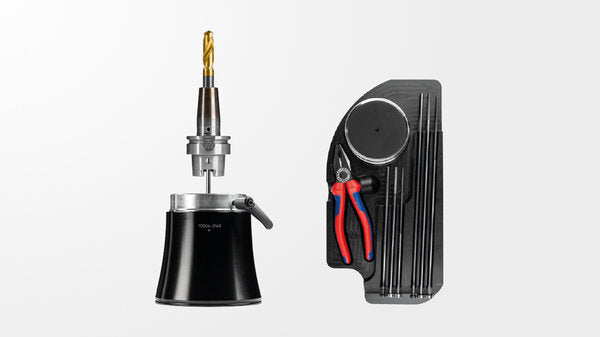

- Shrink fit machine Power Clamp Sprint i4.0; base cabinet, 2 precision base holders; 2 precision chuck supports
-
Company History:
Family-owned since 1977, HAIMER has grown from a precision parts specialist into a global tooling solutions supplier with operations across Europe, North America, and Asia.
