Haimer Balancing Machine Tool Dynamic TD 1002 Machinery TD105-H06-US (0842726)
Haimer Balancing Machine Tool Dynamic TD 1002 Machinery TD105-H06-US (0842726)
Couldn't load pickup availability
Haimer Part Number: TD105-H06-US
HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Haimer Balancing Machine Tool Dynamic TD 1002 Machinery TD105-H06-US | |
| EDP # | 0842726 | |
| Weight (1 pc.) | 7055.0 oz | 199998 g |
| Spindle speed | 600 | |
| Measuring accuracy | < 1,0 | |
| Power connection | 230 / 50 - 60 | |
| Power | 0.4 | |
| Compressed air | 87.023 | |
| Maximum tool length | 14.1730" | 360.000 mm |
| Maximum tool diameter / Ø | 13.3860" | 340.000 mm |
| Maximum tool weight / G | 33.075 | |
| Width / B | 19.6850" | 500.000 mm |
| Height / H | 26.7720" | 680.000 mm |
| Deep / T | 32.2830" | 820.000 mm |
Product Features:
- Balancing Machine Tool Dynamic TD 1002
- Measuring and compensation of unbalance on 1 plane
- Correction of the unbalance by radial drilling or balancing rings
- Menu-based handling via integrated user interface and display
- Vibration optimized base
- Balancing machine to balance tool holders on 1 plane.

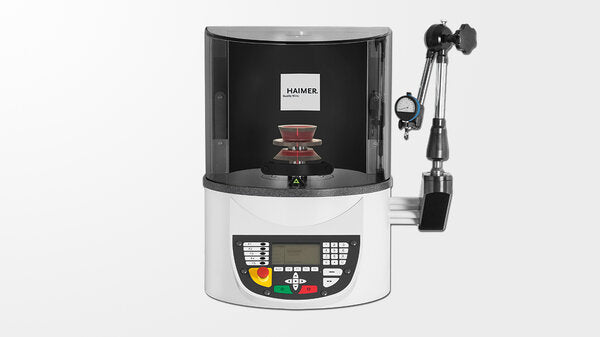

- Picture shows balancing device TD 1002 with optional runout measuring device.
-
Company History:
Family-owned since 1977, HAIMER has grown from a precision parts specialist into a global tooling solutions supplier with operations across Europe, North America, and Asia.
