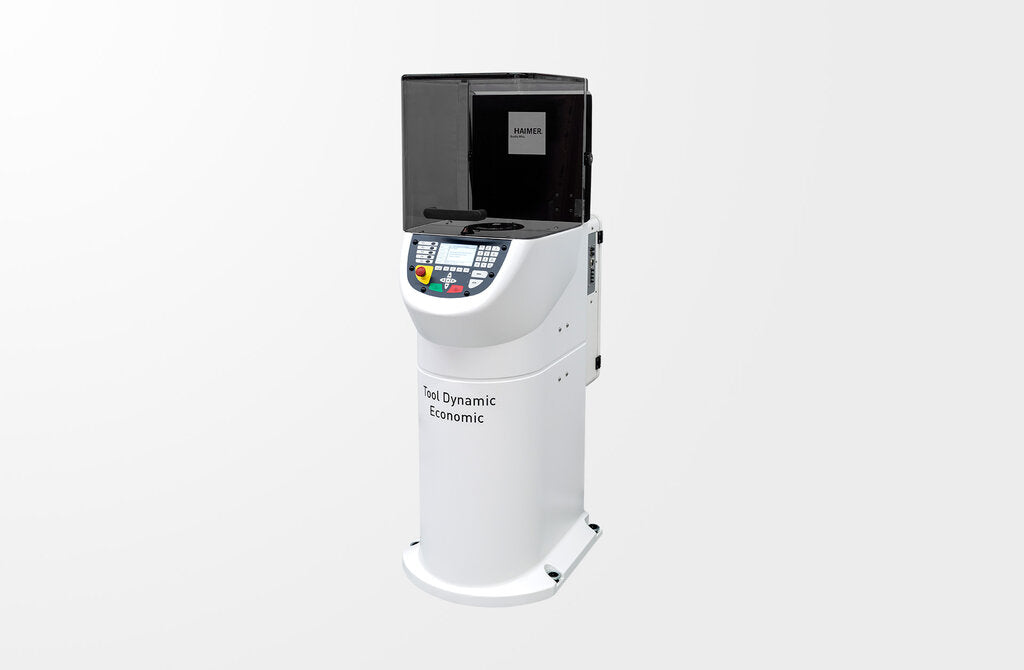

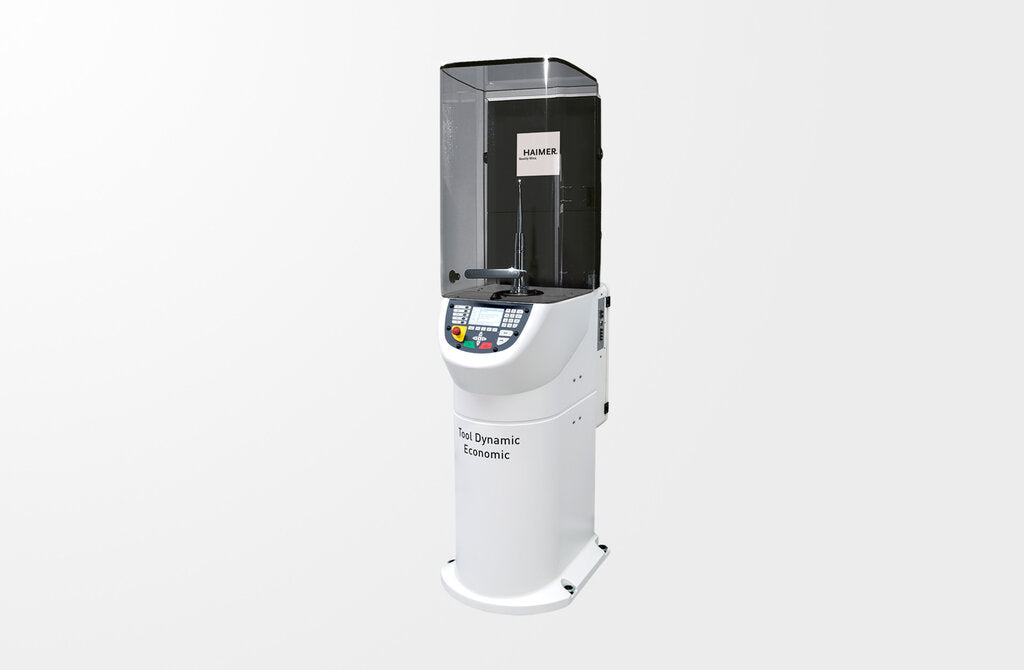

Haimer Balancing Machine Tool Dynamic TD Economic Machinery TD101-H01-US (0842727)
Haimer Balancing Machine Tool Dynamic TD Economic Machinery TD101-H01-US (0842727)
Couldn't load pickup availability
Haimer Part Number: TD101-H01-US
HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Haimer Balancing Machine Tool Dynamic TD Economic Machinery TD101-H01-US | |
| EDP # | 0842727 | |
| Weight (1 pc.) | 15873.0 oz | 450000 g |
| Spindle speed | 300 | |
| Measuring accuracy | < 0,5 | |
| Power connection | 230 / 50 - 60 | |
| Power | 0.4 | |
| Compressed air | 87.023 | |
| Maximum tool length | 15.7480" | 400.000 mm |
| Maximum tool diameter / Ø | 14.9610" | 380.000 mm |
| Maximum tool weight / G | 66.15 | |
| Maximum tool length (upon request) | 27.5590" | 700.000 mm |
| Width / B | 19.6850" | 500.000 mm |
| Height / H | 59.0550" | 1500.000 mm |
| Deep / T | 32.2830" | 820.000 mm |
Product Features:
- Balancing Machine Tool Dynamic TD Economic
- Measuring and compensation of unbalance on 1 plane
- Correction of the unbalance by radial drilling or balancing rings
- Menu-based handling via integrated user interface and display
- Base made polymer concrete for highest measuring accuracy
- Balancing machine to balance tool holders on 1 plane.
- The Tool Dynamic TD Economic is your start into the modular balancing system of the Tool Dynamic series. The TD Economic measures and compensates the unbalance in one plane (static). Therefore it is perfect for balancing short tool holders and tools because of the couple unbalance being very low. The device is operated via the integrated keyboard and screen.
-
