Haimer Part Number: TD103-H01-US
HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Haimer Balancing Machine Tool Dynamic TD Comfort Plus Machinery TD103-H01-US | |
| EDP # | 0842733 | |
| Weight (1 pc.) | 17998.0 oz | 510246 g |
| Spindle speed | 300 | |
| Measuring accuracy | < 0,5 | |
| Power connection | 230 / 50 - 60 | |
| Power | 0.4 | |
| Compressed air | 87.023 | |
| max. tool length measuring and presetting | 15.7480" | 400.000 mm |
| Maximum tool diameter / Ø | 14.9610" | 380.000 mm |
| Maximum tool weight / G | 66.15 | |
| Maximum tool length (upon request) | 27.5590" | 700.000 mm |
| Maximum tool diameter (upon request) | 16.7320" | 425.000 mm |
| Width / B | 43.3070" | 1100.000 mm |
| Height / H | 59.0550" | 1500.000 mm |
| Deep / T | 32.2830" | 820.000 mm |
Product Features:
- Modular balancing Machine Tool Dynamic TD Comfort Plus
- Measuring and compensation of unbalance on 1 and 2 planes
- Correction of the unbalance by radial drilling, milling, balancing rings or balancing screws

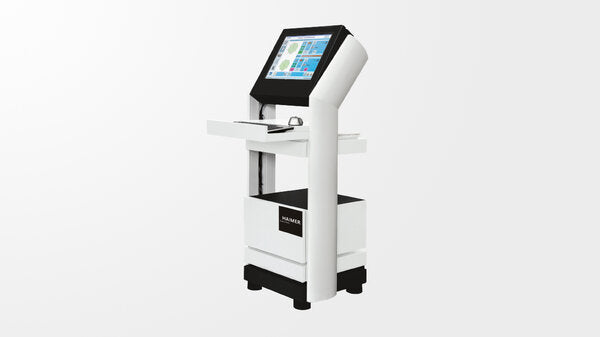

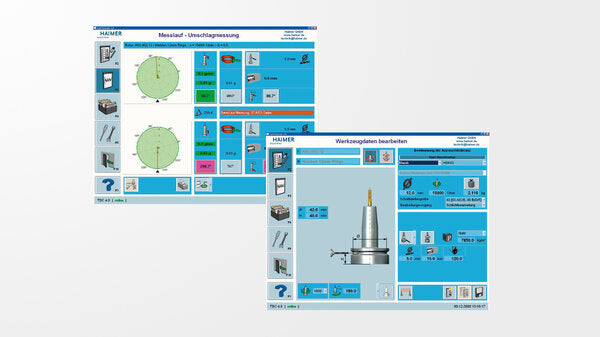

- Comfortable handling via touchscreen
- Base made polymer concrete for highest measuring accuracy
- Balancing machine to balance tool holders on 1 and 2 planes.
- The Tool Dynamic TD Comfort Plus offers a maximum of usability and comfort. Using the TD Comfort Plus you will never loose your goal during the balancing progress. You would like to balance your tools efficiently, fast and without being an expert? Then feel free to choose Tool Dynamic TD Comfort Plus - optimized touchscreen usage, integrated PC, comfortable storages for your balancing accessories and a maximum of equipment make balancing fast, convenient and very easy.

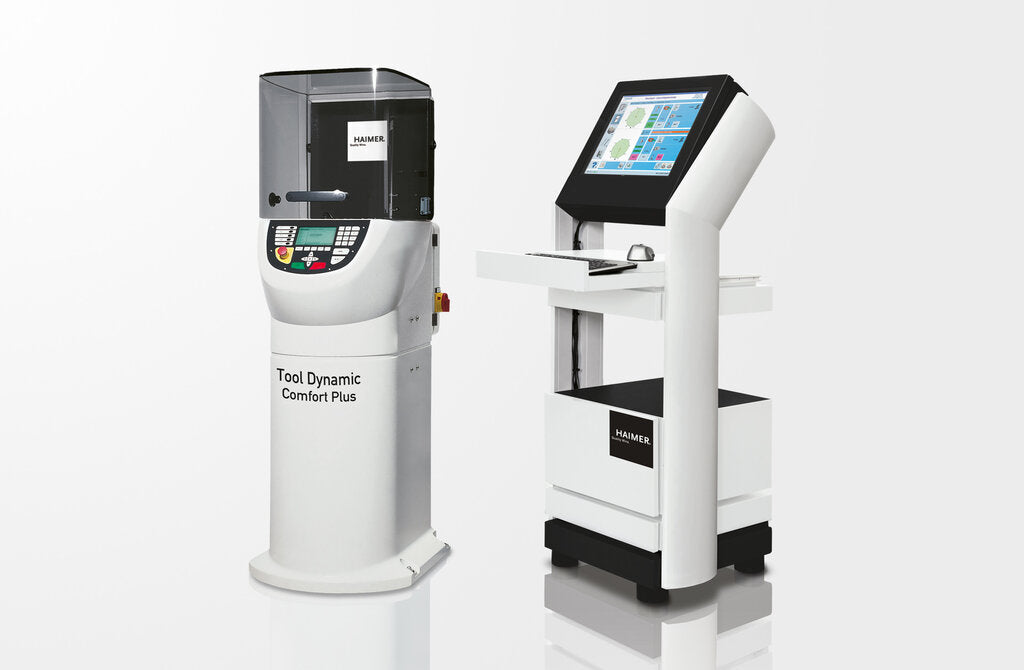

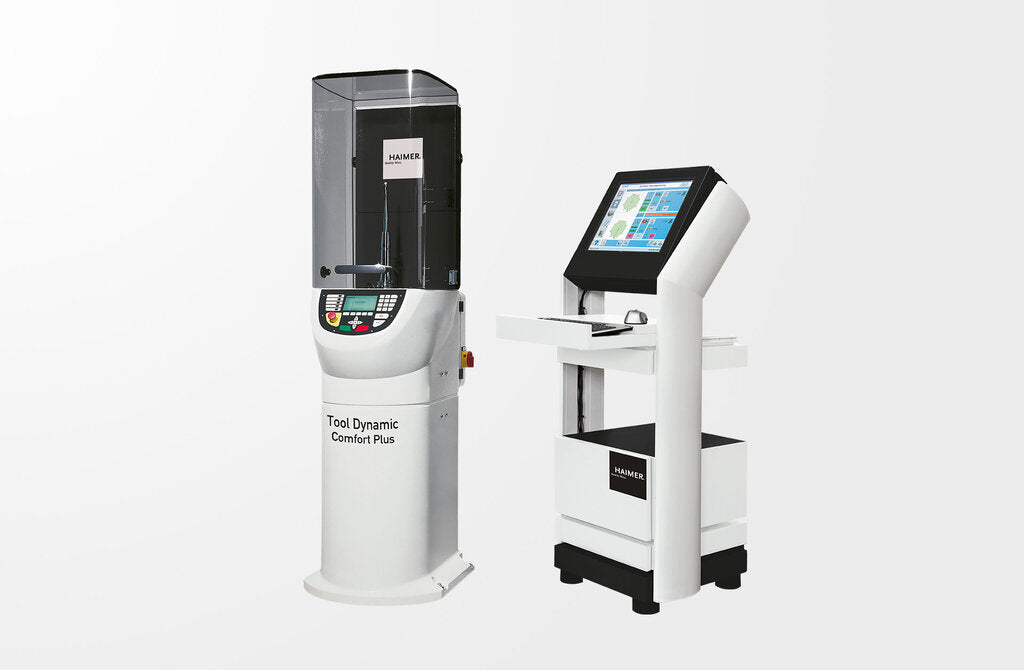

- Picture shows special equipment: Safety hood type 3 for tools with lenghts up to 700 mm.
-
