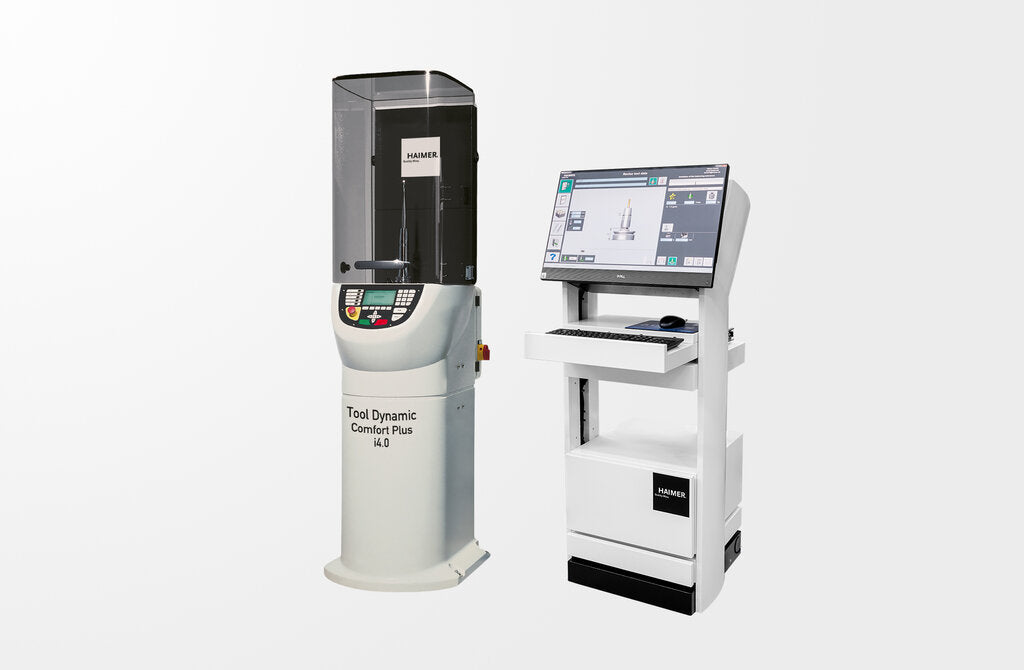

Haimer Balancing Machine Tool Dynamic TD Comfort Plus i4.0 Machinery TD403-H01-US (0842740)
Haimer Balancing Machine Tool Dynamic TD Comfort Plus i4.0 Machinery TD403-H01-US (0842740)
Couldn't load pickup availability
Haimer Part Number: TD403-H01-US
HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Haimer Balancing Machine Tool Dynamic TD Comfort Plus i4.0 Machinery TD403-H01-US | |
| EDP # | 0842740 | |
| Spindle speed | 300 | |
| Measuring accuracy | < 0,5 | |
| Power connection | 230 / 50 - 60 | |
| Power | 0.4 | |
| Compressed air | 87.023 | |
| Maximum tool length | 15.7480" | 400.000 mm |
| Maximum tool diameter / Ø | 14.9610" | 380.000 mm |
| Maximum tool weight / G | 66.15 | |
| Maximum tool length (upon request) | 27.5590" | 700.000 mm |
| Maximum tool diameter (upon request) | 16.7320" | 425.000 mm |
| Width / B | 43.3070" | 1100.000 mm |
| Height / H | 59.0550" | 1500.000 mm |
| Deep / T | 32.2830" | 820.000 mm |
Product Features:
- TOOL DYNAMIC TD COMFORT PLUS i 4.0 MODULAR BALANCING SYSTEM
- The new Tool Dynamic TD Comfort Plus i4.0 offers a maximum of usability and comfort. Highlights are the possibility of digital data transfer to the machine, network compatibilities (i4.0 ready) and an optimized 27"" multi-touchscreen usage via separate control terminal, integrated PC, comfortable storages for your balancing accessories and a maximum of equipment make balancing fast, convenient and very easy.
-
Company History:
Family-owned since 1977, HAIMER has grown from a precision parts specialist into a global tooling solutions supplier with operations across Europe, North America, and Asia.
