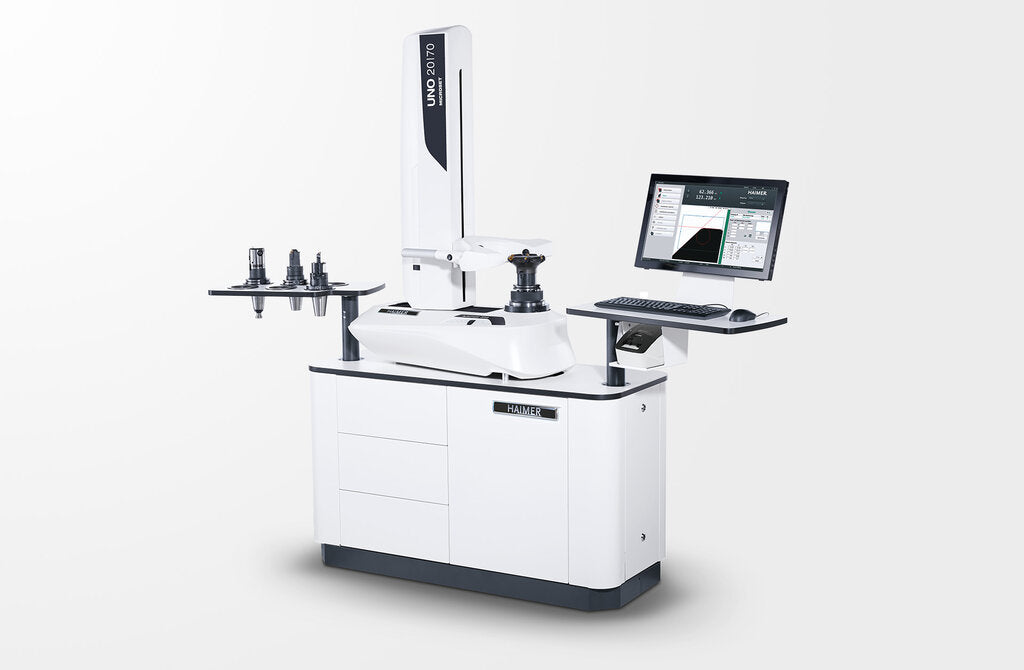

Haimer UNO 20|40 Automatic Drive Machinery TP130-A01-SK02-C11 (0843163)

Haimer Part Number: TP130-A01-SK02-C11

HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Product Features:

- Tool presetter UNO automatic drive

- Fully automatic measuring for unrivaled convenience

- Automatic tool measurement in 3 axes

- Motorized fine adjustment

- Release-by-Touch

- Repeatability ± 2 μm

- Spindle runout 2 µm

- With fully automated measurement capabilities, the UNO automatic drive is the high-end model in the UNO series. The UNO automatic drive is fully independent of the operator and can be used with minimal user expertise. This guarantees maximum quality and time savings, even with complex tools on multiple planes.

- Microvision UNO image processing system

- SK50 ultra precision spindle, autofocus

- Motorised fine adjustment of all axes

- 24 " touch screen

- 4 × 90° and 3 × 120° motor-driven indexing

- Pneumatic spindle brake

- Vacuum clamping

- Premium base cabinet includes storage for 6 adapters

- Sigma function

- Memory for 1,000 zero points, tools and tool lists

- USB / LAN data output

- Release-by-touch

- Edgefinder

- Tool inspection light

- 2 µm spindle runout

- ± 2 µm repeatability

- Label printer

-
