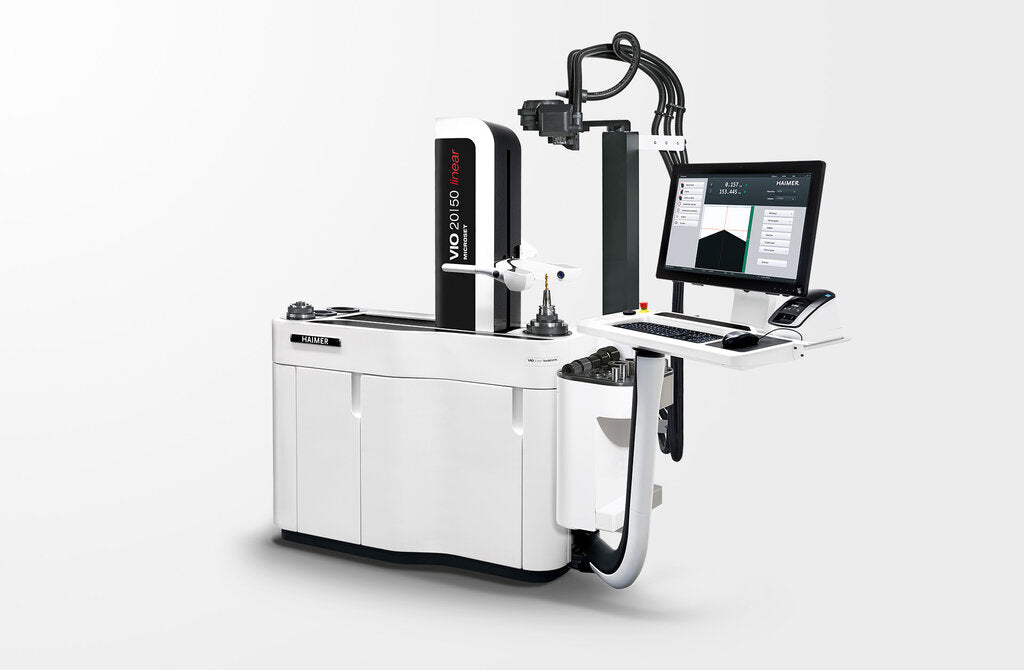

Haimer Presetting- And Shrink Fit Machine VIO 20|50 Linear toolshrink 700 Machinery M-G1061 (0843177)
Haimer Presetting- And Shrink Fit Machine VIO 20|50 Linear toolshrink 700 Machinery M-G1061 (0843177)
Couldn't load pickup availability
Haimer Part Number: M-G1061
HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Haimer Presetting- And Shrink Fit Machine VIO 20|50 Linear toolshrink 700 Machinery M-G1061 | |
| EDP # | 0843177 | |
| Weight (1 pc.) | 25397.0 oz | 720001 g |
| Maximum tool diameter / Ø | 16.5350" | 420.000 mm |
| Maximum snap gauge tool diameter | 3.9370" | 100.000 mm |
| Maximum tool length on Z-axis | 19.6850" | 500.000 mm |
| Maximum tool length on Z-axis shrinking | 25.5910" | 650.000 mm |
| Maximum tool weight / G | 352.8 | |
Product Features:
- Tool Presetter VIO linear toolshrink
- Shrinking and presetting combined
- Precise axis positioning by linear drive
- Fully automatic HAIMER induction unit
- Automatic length adjustment with ± 10μm
- Ideal in combination with HAIMER shrink-fit for best results
- Spindle runout 2 µm
- The combination of shrinking and presetting technology with precise length adjustment on the μm scale makes the VIO linear top of its class, including the toolshrink variant. The VIO linear toolshrink is the ideal choice, especially when using shrinking tools, sister tools or multi-spindle machines.
- Microvision VIO image processing system
- ISS-U universal ultra precision spindle with automatic adapter identification, mechanical clamping and motorised indexing 4 × 90° and 3 × 120°
- Best shrinking results, regardless of the holder brand
- High precision and fast axis-positioning through linear motion
- Fully automatic HAIMER induction unit 13 kW coil
- Automatic monitoring of shrinking parameters
- Automatic length adjustment within ± 10 μm
- Extractor with filter
- HAIMER contact cooling
- 24 " touchscreen
- Ideally used with HAIMER shrink fit holders for best results: shrink in on ± 5 μm
- Dynamic shrinking for short process times
- Pre-installed HAIMER data base
-
Company History:
Family-owned since 1977, HAIMER has grown from a precision parts specialist into a global tooling solutions supplier with operations across Europe, North America, and Asia.
