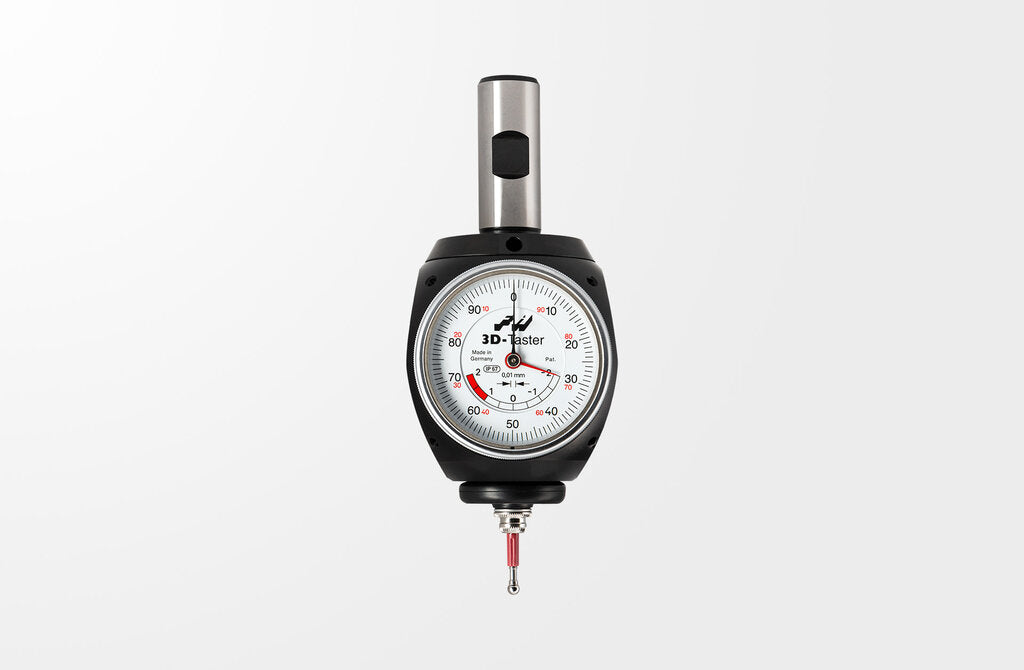

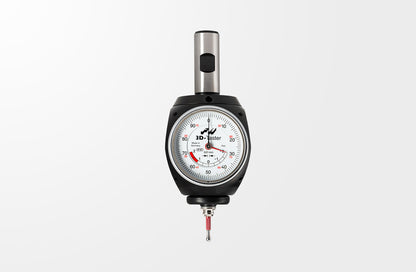

Haimer Universal 3D-Sensor Inch Metrology 80.360.00.IN (0843539)
Haimer Universal 3D-Sensor Inch Metrology 80.360.00.IN (0843539)
Couldn't load pickup availability
Haimer Part Number: 80.360.00.IN
HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

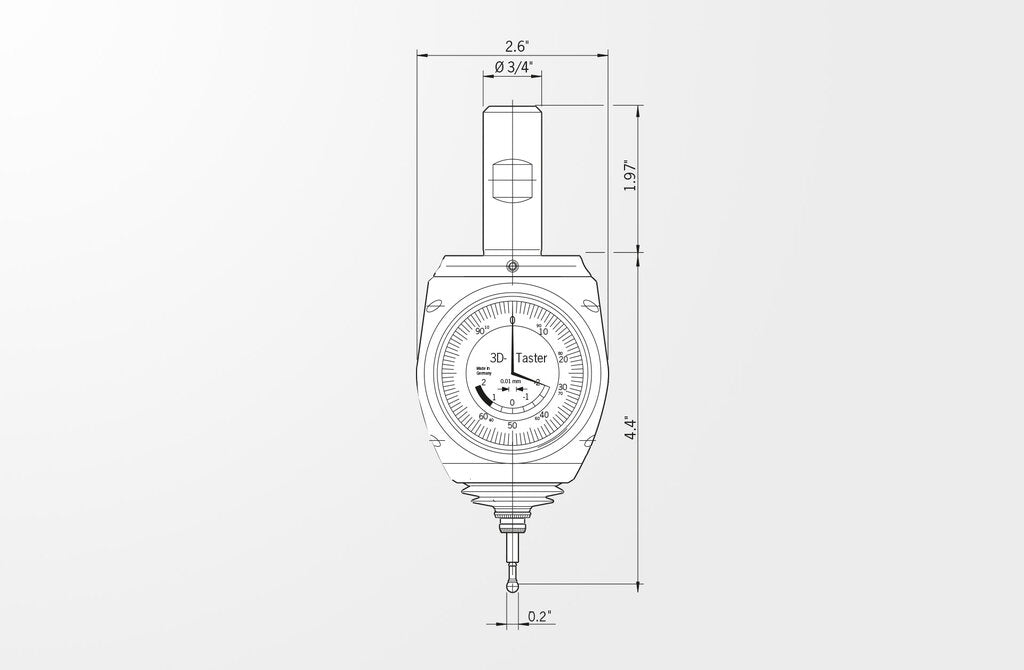

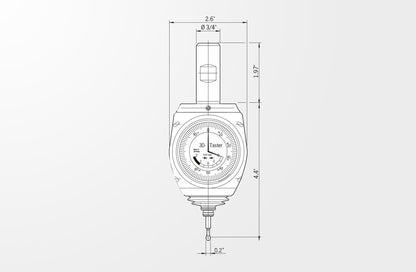

| Properties | ||
|---|---|---|
| Name | Haimer Universal 3D-Sensor Inch Metrology 80.360.00.IN | |
| EDP # | 0843539 | |
| Weight (1 pc.) | 32.0 oz | 898 g |
| Version | Inch | |
| Length 1 / L1 | 4.4000" | 111.760 mm |
| Length 2 / L2 | 1.9700" | 50.038 mm |
| Diameter 1 / D1 | 0.7500" | 19.050 mm |
| Diameter 2 / D2 | 0.2000" | 5.080 mm |
| Width / B | 2.6000" | 66.040 mm |
| Smallest unit of measure | 0.0004" | 0.010 mm |
Product Features:
- Universal 3D-Sensor
- The Universal 3D-Sensor is a very precise and versatile edge-finding measuring instrument for milling and EDM machines (insulaed probe). Made entirely at the HAIMER Germany facility, it is a instrument that no shop can do without.
- Only the HAIMER 3D-Sensor allows for the edge to be found on the first try. No calculating of the probe’s ball diameter is necessary - just zero it out! Problems with mathematics or calculations are eliminated, allowing for fewer operator errors. Our 3D-Sensor is quick and easy, reducing the extra time needed with most edge-finders, thus increasing the productivity and accuracy of the operator.
- Short and long probes are available. The sensor probes can be changed without ever needing a tool. No re-calibration of the unit is needed after changing sensor probes.
- -IP 67 waterproof
- Universal 3D-Sensor including clamping shank Ø 3/4", short probe tip Ø 0.2"
- Please take note: The given measuring precision of 0.0004" only applies, if the original HAIMER probe tips are used.
-
Company History:
Family-owned since 1977, HAIMER has grown from a precision parts specialist into a global tooling solutions supplier with operations across Europe, North America, and Asia.
