Haimer Centro Metrology 80.300.00.FHN (0843546)

Haimer Part Number: 80.300.00.FHN

HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Product Features:

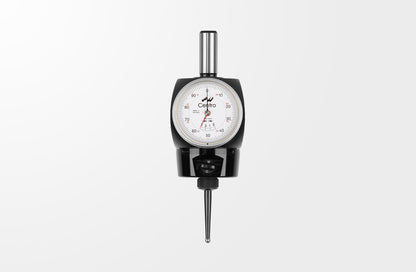

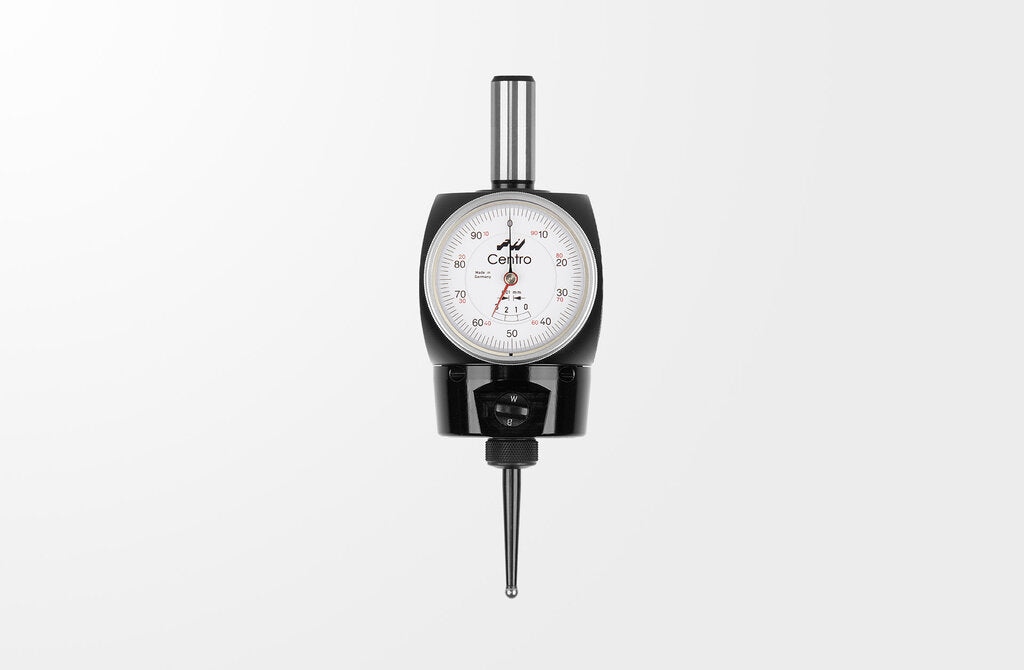

- Coaxial indicator Centro

- The HAIMER Centro is a very precise and versatile coaxial indicator to center bores and arbors.

- Center bores and arbores quick and precise

- The Centro is clamped in a tool holder and positioned close the sought axis. The probe tip is adjusted and touches the bore or arbor all the way around.

- Dial gauge always in field of vision

- With low rpm the probe slides along the bore or arbor. Its movement is transferred to the dial gauge. By using an antenna the Centro does not spin around and stays in field of vision.

- By using the Centro you find the axis of bores or arbors - reliably

- As long as the spindle is out of the center of the bore or arbor the hands of the dial gauge stay in movement. By changing the position of x- and y- axis at the machine you can jibe the axis of the spindle and the work piece.

- Further advantages:

- Check the axial run-out of the work piece to the spindle

- Compensation of the run-out errors of the spindle and tool holder >> No adjustment necessary

- Even in bigger distance the unusual size of the dial gauge is helpful to finish the job

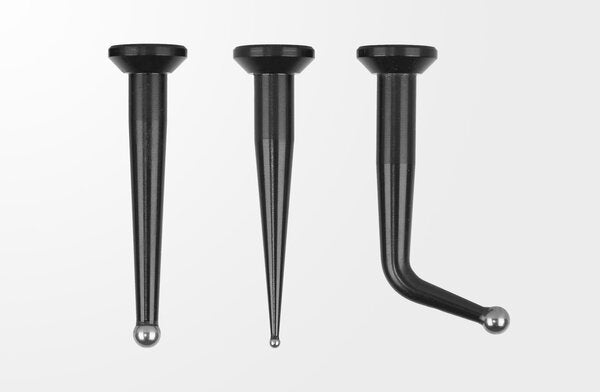

- Replaceable probes

- Please take note: The given measuring precision of 0.01 mm only applies, if the original HAIMER probe tips are used.

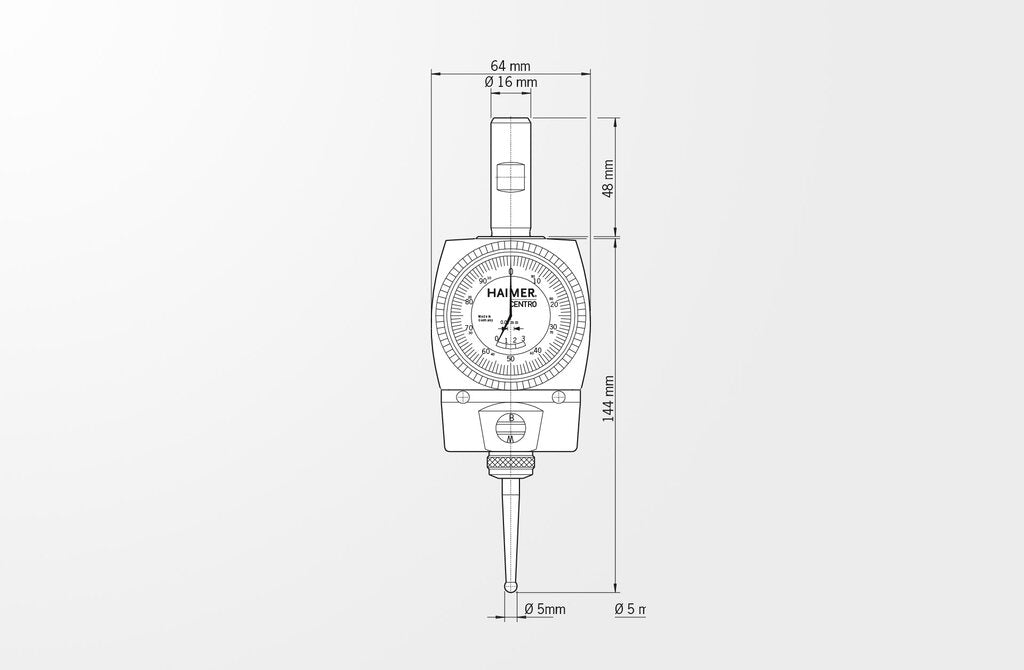

- Included in delivery: Centro with clamping shank Ø 16 mm, straight probe tip Ø 5 mm

- Centro with clamping shank Ø 16 mm, straight probe tip Ø 5 mm

-
