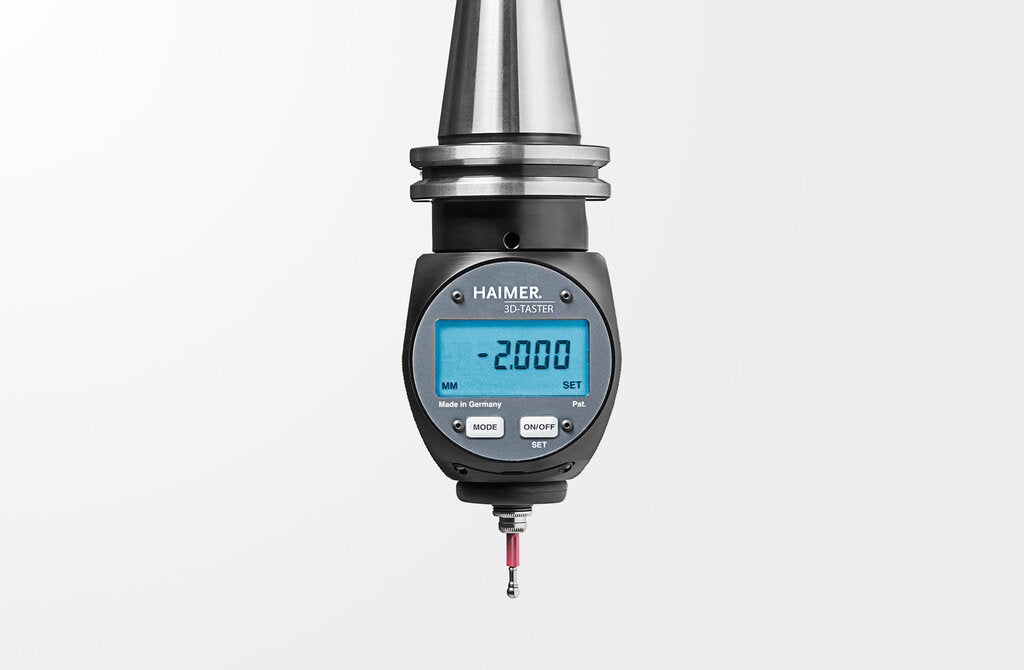

Haimer Digital 3D-Sensor w/ integretad Adapter BT40 Metrology 80.465.40.FHN (0843562)

Haimer Part Number: 80.465.40.FHN

HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Product Features:

- 3D-Sensor Digital with integrated adapter

- The Digital 3D-Sensor with an integrated taper is a further development of the time proven mechanical 3D-Sensor. It serves for approaching workpiece edges on milling and EDM machines. The integrated adapter ensures straightforward handling: Adapter and 3D-Sensor form a unity.

- The spindle may be positioned quickly and safely on the references edge. The approaching operation can be exactly monitored on the digital display. The zero points can be set without any calculations because the spindle axis is positioned exactly on the approached edge.

- The digital display has large numbers that measure in increments of 0.001 mm. It can be easily read from a long distance (i.e. when mounted on a large machining center). The digital display is water- and dust-proofed according to IP 64 and can be stored in the tool magazine of the machine.

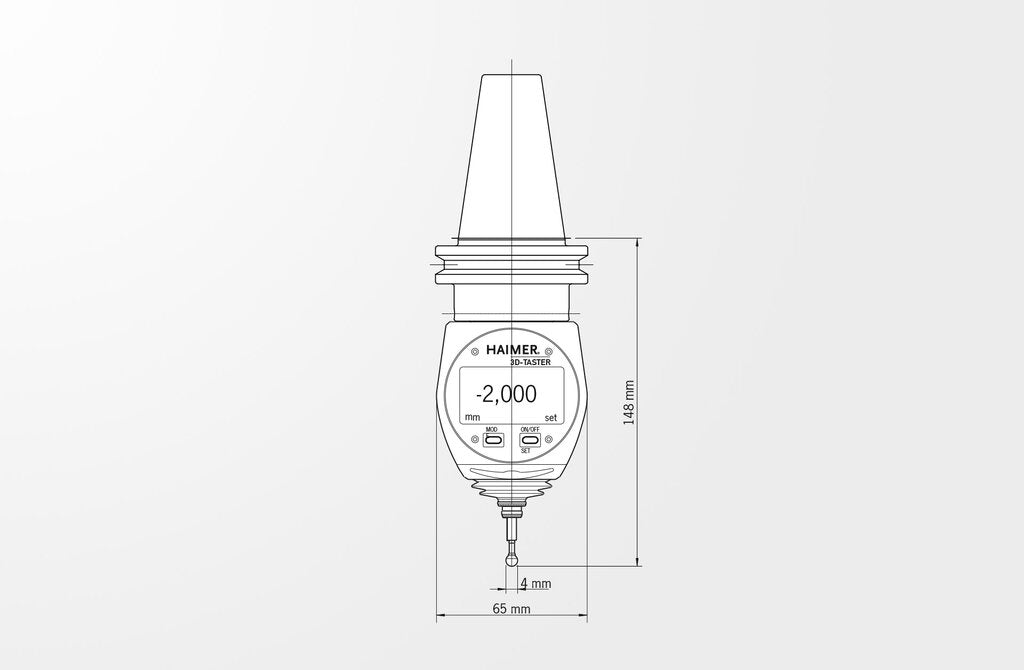

- 3D-Sensor Digital with integrated adapter, short probe tip Ø 4 mm

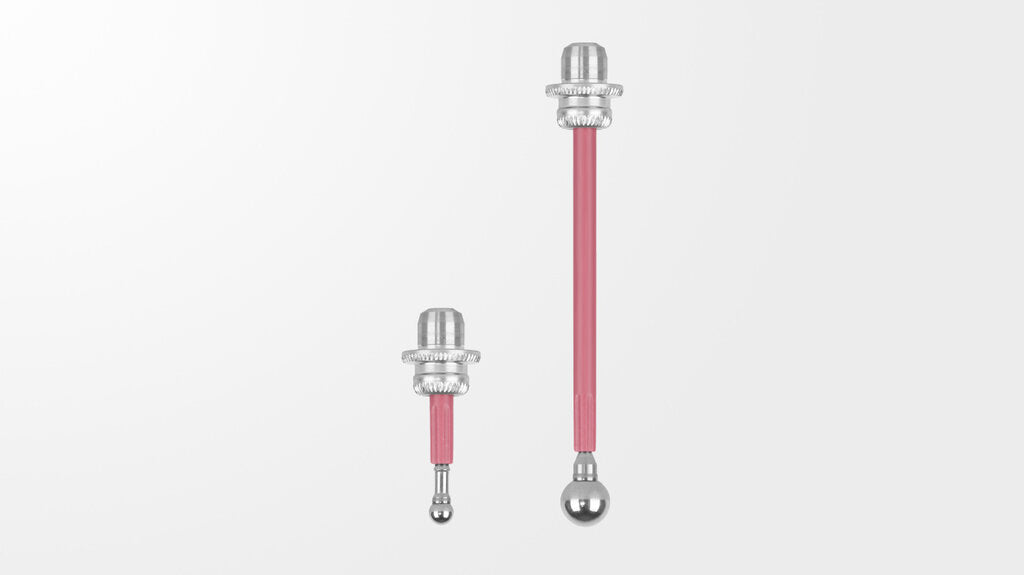

- Please take note: The given measuring precision of 0.005 mm only applies, if the original HAIMER probe tips are used.

-
