Haimer 3D-Sensor Zero Master Inch Metrology 80.960.00.IN (0843563)
Haimer 3D-Sensor Zero Master Inch Metrology 80.960.00.IN (0843563)
Couldn't load pickup availability
Haimer Part Number: 80.960.00.IN
HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Haimer 3D-Sensor Zero Master Inch Metrology 80.960.00.IN | |
| EDP # | 0843563 | |
| Weight (1 pc.) | 14.0 oz | 390 g |
| Version | Inch | |

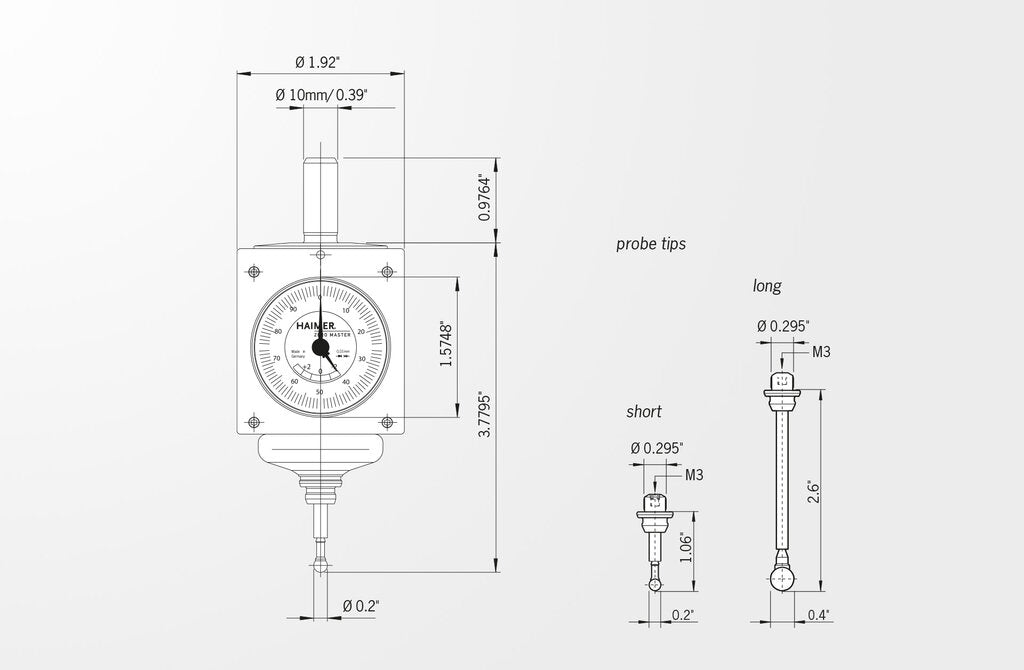

| Length 1 / L1 | 3.7800" | 96.000 mm |
| Length 2 / L2 | 0.9760" | 24.800 mm |
| Diameter 1 / D1 | 0.3940" | 10.000 mm |
| Diameter 2 / D2 | 0.1570" | 4.000 mm |
| Width / B | 1.9290" | 49.000 mm |
| Smallest unit of measure | 0.0004" | 0.010 mm |
Product Features:

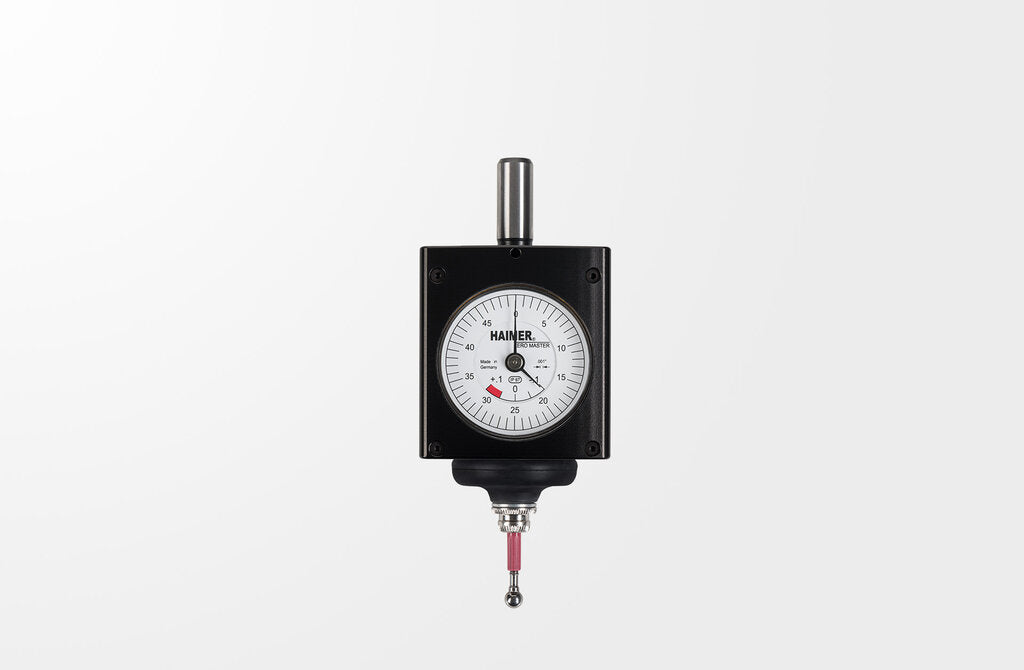

- 3D-SENSOR ZERO MASTER Inch Version
- The Zero Master is the smallest 3D-Sensor worldwide. Usage, function and accuracy are equal to the Universal 3D-Sensor. The size of the Zero Master is adapted to small machines. The diameter of the clamping shank is 10mm / 0.3937inch.
- Accordingly, it can be also used on machines with ISO 30 or small HSK spindles.
- The housing is shortened and does not protrude far from the spindle so even large work pieces can be measured. The Zero Master can be read on its small analog dial gauge.

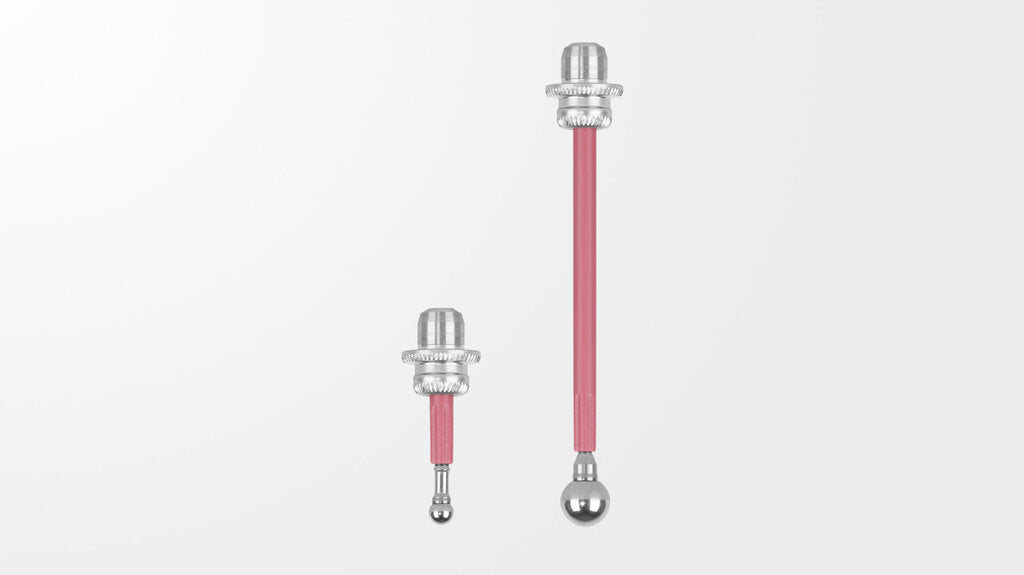

- The Zero Master can be equipped with a short (ball diam. 0.2 inch) and a long (ball diam. 0.4 inch) probe tip. Naturally, the probe tips are compatible with all other HAIMER 3D-Sensors.
- The Sensor is waterproof according to IP 67.
- Zero Master with clamping shank Ø 0.39", short probe tip Ø 0.2"
- Please take note: The given measuring precision of 0.0004" only applies if the original HAIMER probe tips are used.
-
