Haimer 3D-Sensor Zero Master w/ Integrated Short Adapter HSK-E50 Metrology 80.963.E50 (0843572)

Haimer Part Number: 80.963.E50

HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Product Features:

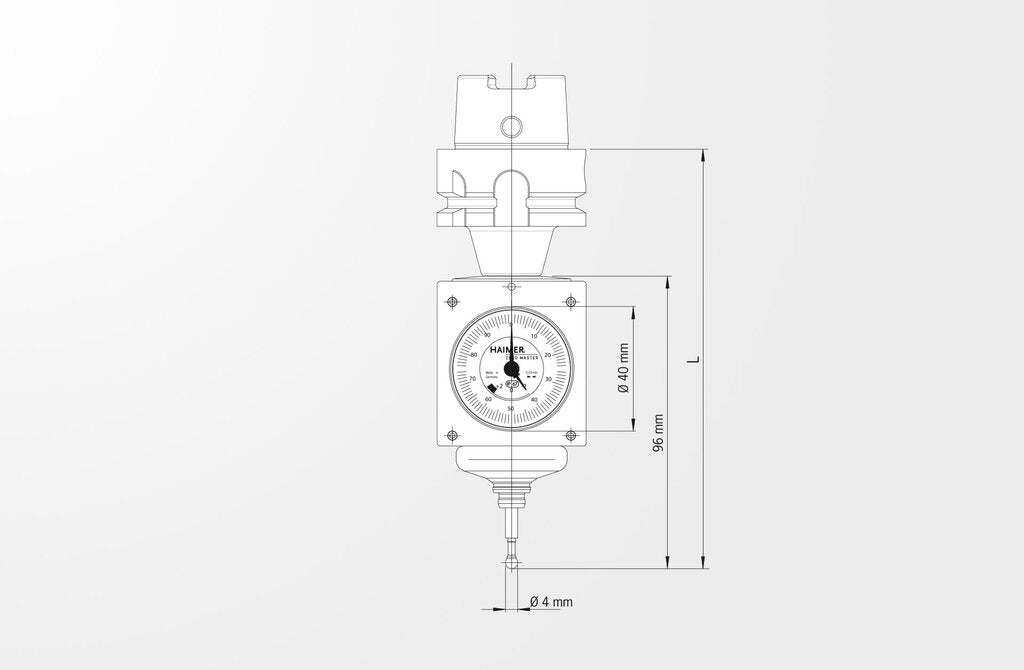

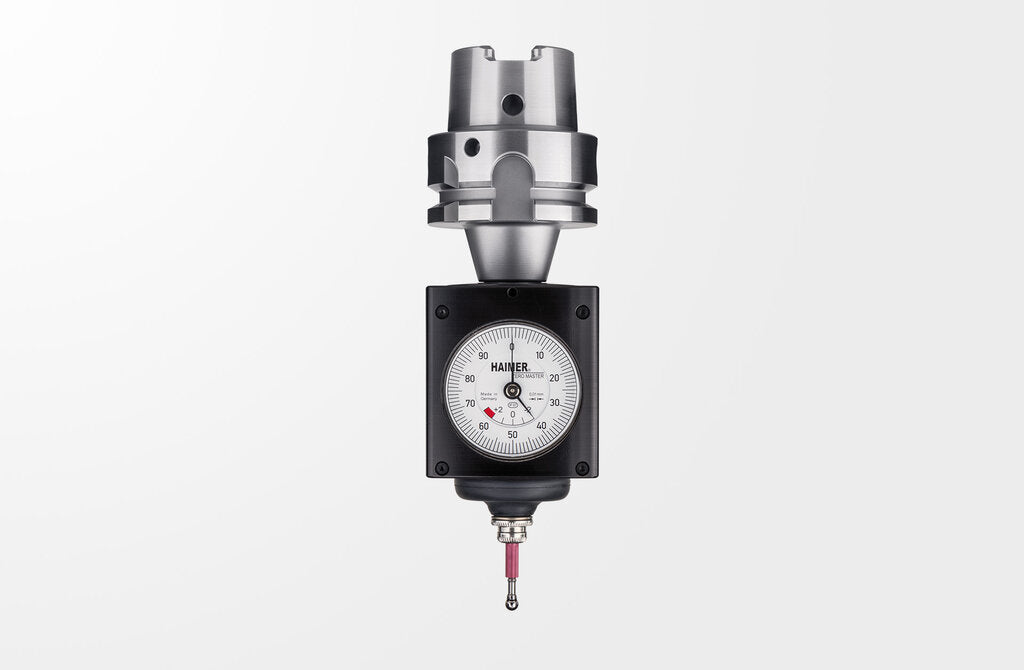

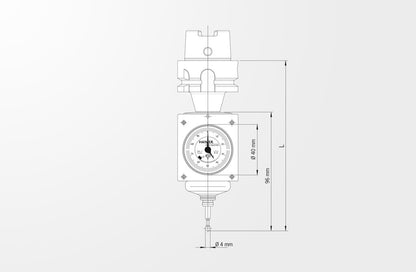

- 3D-Sensor Zero Master with integrated short adapter

- The Zero Master is the smallest 3D-Sensor worldwide. Usage, function and accuracy are equal to the Universal 3D-Sensor. The size of the Zero Master - especially in combination with the integrated short adapters - is adapted to small machines.

- The housing is shortened and does not protrude far out of the spindle so even big work pieces can be measured. The Zero Master can be read with a small analog dial gauge.

- Version:

- With integrated short adapter in version SK30, BT30, HSK-25/32/40/50/63

- Utmost precision of 0.01 mm

- Enhanced overrun distance

- IP 67 waterproof

- Application:

- For small Milling and EDM machines (isolated probe)

- For workpiece-reset and length measuring

- Any direction approach (X-, Y-, Z-axis)

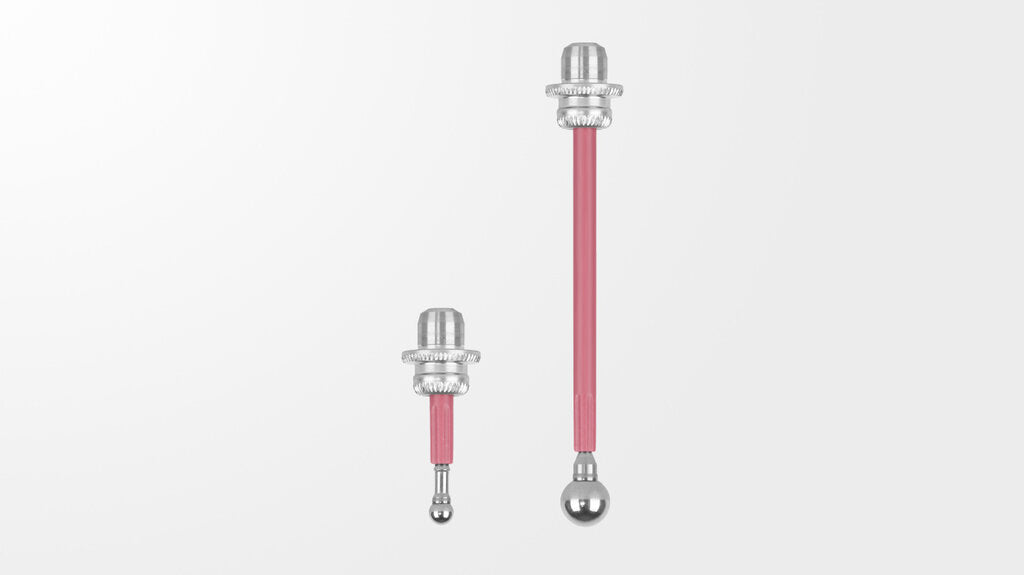

- Zero Master with integrated short adapter, short probe tip Ø 4 mm

- Please take note: The given measuring precision of 0.01 mm only applies, if the original HAIMER probe tips are used.

-

Company History:

Family-owned since 1977, HAIMER has grown from a precision parts specialist into a global tooling solutions supplier with operations across Europe, North America, and Asia.
