Haimer Machine Tool-calibration Set Metrology 80.370.00 (0843582)

Haimer Part Number: 80.370.00

HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Product Features:

- Machine Tool Calibration Set

- Original HAIMER accessory

- Fast and easy installation and inspection of your machine tool

- Highly accurate alignment of lathe and milling machines to secure your quality level

- Quick and very precise positioning of your axis and workpieces to check the machine accuracy

- Faster and more precise installation of axis and spindles of your machine tool to reduce scrap and avoid unnecessarily high tool costs

- Simple and reliable inspection of the machine geometry for consistent machining results

- Stable, dust proof and water proof plastic-case provides perfect protection of your measuring equipment

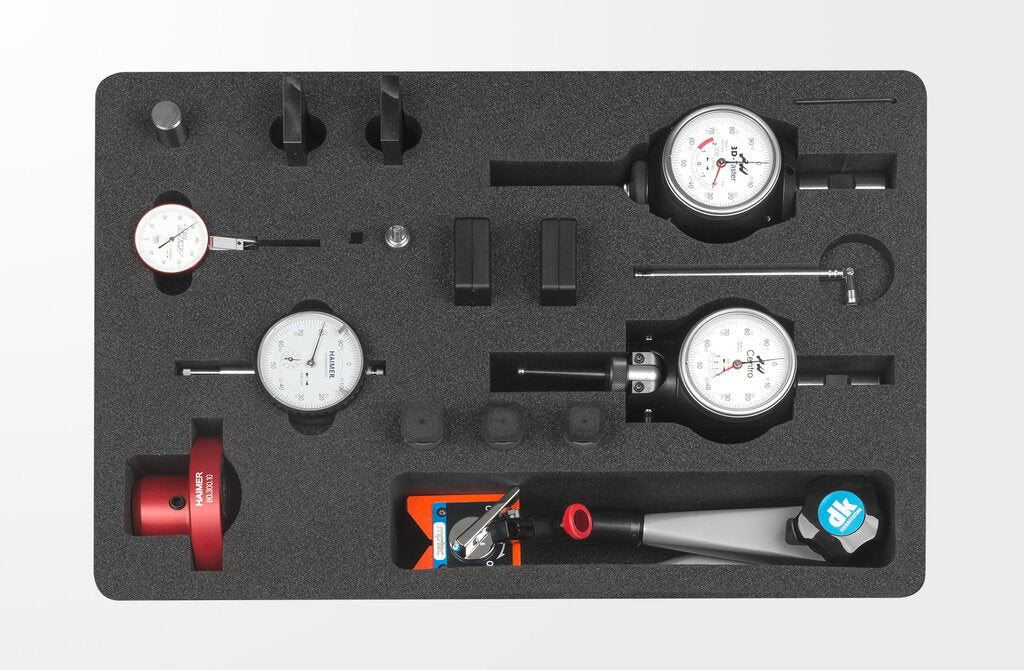

- Two high quality, precise and universal HAIMER sensors incl. accessories

- Adapter for versatile use of the HAIMER sensors in all types of metal cutting machines

- Several gauge blocks for checking and calibrating your measuring equipment and for individual measurements

- Two high quality dial indicators with corresponding gauge stand

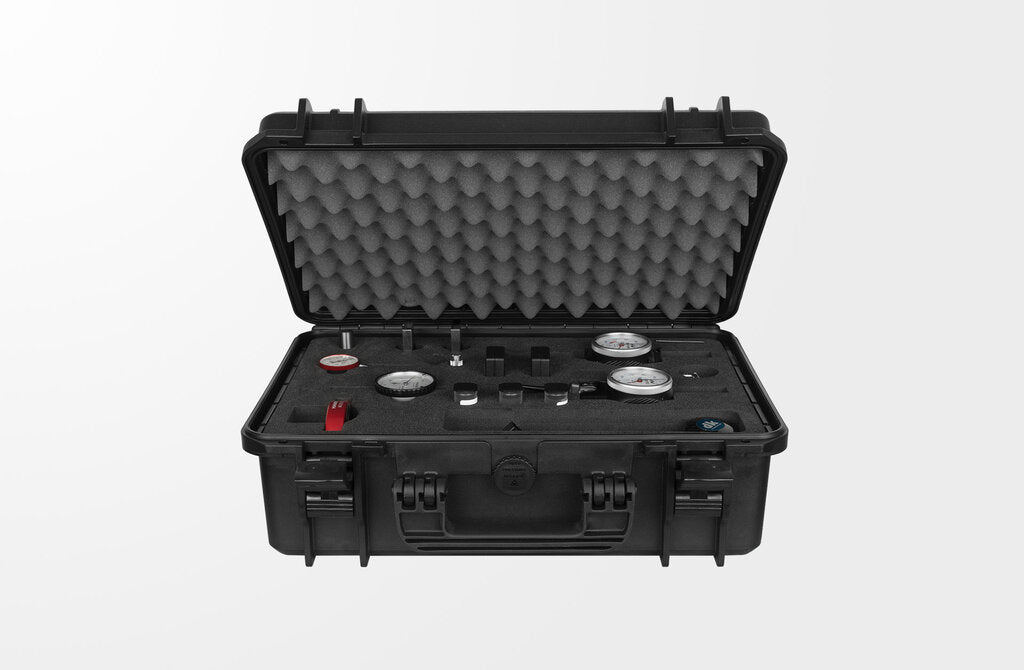

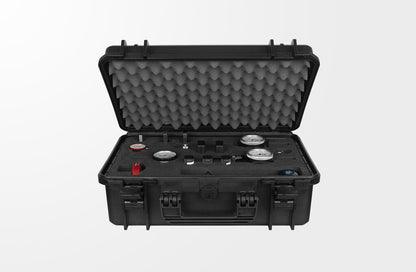

- Suitcase:

- Black plastic-case, dust- and water proof according to IP67, collision protection

- external dimension: 464 x 366 x 176 mm, internal dimension: 426 x 290 x 159 mm

- Black foam inlay with 18 recesses

- HAIMER Universal 3D-Sensor

- Short probe tip Ø 4 mm, Long probe tip Ø 8 mm

- HAIMER Centro

- Straight probe tip, Ø 5 mm

- Bent probe tip, Ø 5 mm

- Straight probe tip, Ø 2 mm

- Centro fixture and ajustment help

- Test bolt, Ø 16 x 93 mm

- KÄFER dialindicator M2TopS:

- Measuring range 10 mm, collision protection, robust metal housing, rotation counter

- Lever gauge, TESA Swisstast

- Length probe arm 12,5 mm with ruby ball

- Dial indicator tripod, DK fixturing systems

- Radius of action 345 mm, magnetic holding power 900 N, clamping shaft Ø 8 h 6
