Haimer Quick Change Inserts 01 Type FH; Shank Ø D3 = 2.5 mm Tool Holder 80.501.02.5 (0844296)
Haimer Quick Change Inserts 01 Type FH; Shank Ø D3 = 2.5 mm Tool Holder 80.501.02.5 (0844296)
Couldn't load pickup availability
Haimer Part Number: 80.501.02.5
HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Haimer Quick Change Inserts 01 Type FH; Shank Ø D3 = 2.5 mm Tool Holder 80.501.02.5 | |
| EDP # | 0844296 | |
| Weight (1 pc.) | 3.0 oz | 73.0 g |

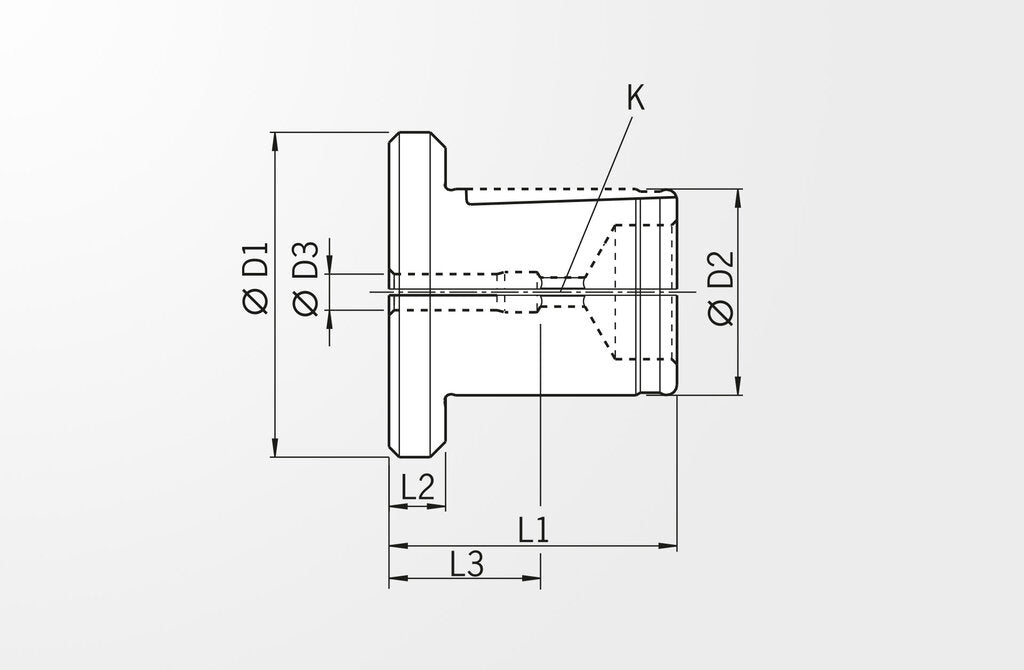

| Diameter 1 / D1 | 1.2600" | 32.000 mm |
| Diameter 2 / D2 | 0.7870" | 20.000 mm |
| Diameter 3 / D3 | 0.0980" | 2.500 mm |
| Length 1 / L1 | 1.1020" | 28.000 mm |
| Length 2 / L2 | 0.2170" | 5.500 mm |
| Length 3 / L3 | 0.4530" | 11.500 mm |
| DIN 371 | M1 - M1,8 | |
| DIN 374/376 ISO | M3,5 | |
| Square | 2.1 | |
| Version | Typ FH01 | |
Product Features:
- Quick change inserts Typ FH 01
- Original HAIMER accessory
- Quick change inserts for HAIMER tapping chuck to clamp taps.
- Not compatible with system Bilz
-
Company History:
Family-owned since 1977, HAIMER has grown from a precision parts specialist into a global tooling solutions supplier with operations across Europe, North America, and Asia.
