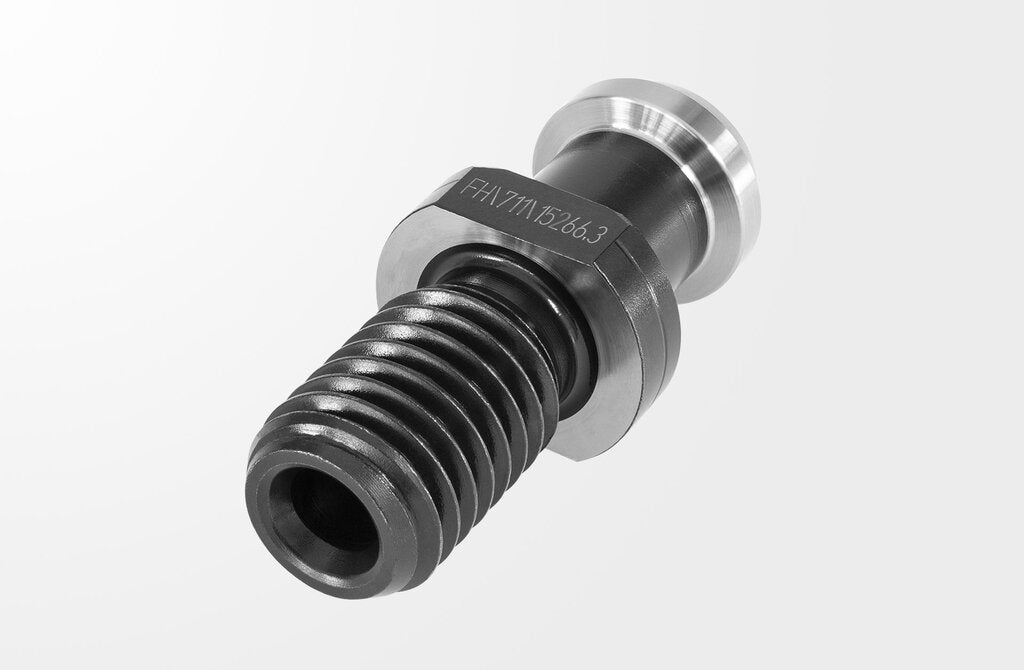

Haimer Pull Stud JIS/BT40 w/ Drill Through (sealed) Tool Holder Accessory 88.701.40 (0844526)
Haimer Pull Stud JIS/BT40 w/ Drill Through (sealed) Tool Holder Accessory 88.701.40 (0844526)
Couldn't load pickup availability
Haimer Part Number: 88.701.40
HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Haimer Pull Stud JIS/BT40 w/ Drill Through | |
| EDP # | 0844526 | |
| Weight (1 pc.) | 3.0 oz | 86.0 g |

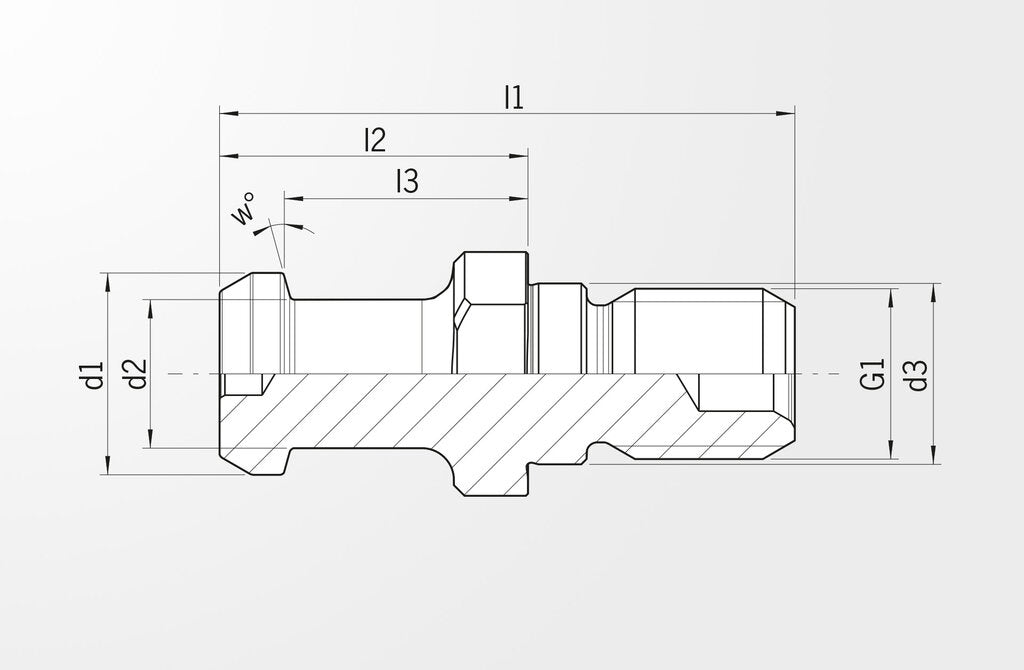

| Diameter 1 / D1 | 0.7480" | 19.000 mm |
| Diameter 2 / D2 | 0.5510" | 14.000 mm |
| Diameter 3 / D3 | 0.6690" | 17.000 mm |
| Length 1 / L1 | 2.1260" | 54.000 mm |
| Length 2 / L2 | 1.1420" | 29.000 mm |
| Length 3 / L3 | 0.9060" | 23.000 mm |
| Thread 1 / g1 | M16 | |
| Version | BT40 - 15° | |
Product Features:
- Pull stud JIS B 6339 without drill through
- Original HAIMER accessory
- Pull studs are an important link between machine and tool. The requirements concerning accuracy, rigidity and reliability are very high. Pull studs of minor quality not only decrease the performance of the machine, they are even a safety risk. A breaking pull stud might cause severe damage on machine and workpiece and even injuries on person
- Made of special steel with high rigidity
- Costly heat treatment in several steps
- Spots with highest stress tempered specifically
- High impact strength
- All functional surfaces fine finished after hardening.
- Highest security and reliability
-
