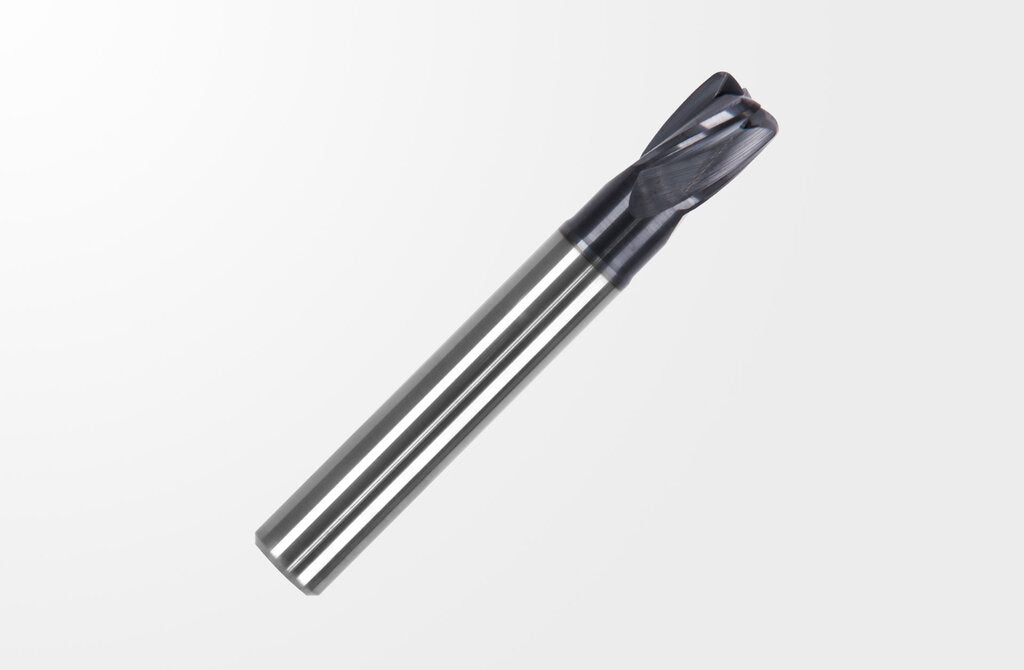

HAIMER MILL HF Series - High Feed, 4F, w/ Straight shank; Radius = 1.5 mm; Cutting Ø D1 = 10 mm H2004KNH1000RDAKZ (0845492)

Haimer Part Number: H2004KNH1000RDAKZ

HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Product Features:

- HAIMER MILL HF Series - H2004KN High Feed

- Solid carbide end mill

- Shank tolerance h5

- Runout < 5 µm (< 0.0002")

- Central cooling

- Fine balanced

- Universal solid carbide end mill for a broad range of applications.

- High feed geometry with double radius

- Shank tolerance: h5

- Central inner cooling

- Neck for higher cutting depth

- Runout < 5 µm

- Cutting length 1.25 x Ø

- For almost all materials

- Optimized for roughing with high feeds

-

- Corner radius

- Teeth 4

- Helix angle 20°

- Straight shank (HA)

- Steel All types of steel and cast steel, with the exception of steel with an austenitic structure

- Stainless steel Stainless austenitic steel and austenitic-ferritic steel and cast steel

- Cast iron Grey cast iron, cast iron with spheroidal graphite, malleable cast iron, cast iron with vermicular graphite

- High temperature alloys and titanium alloys Heat resisting special alloys based on iron, nickel and cobalt, titanium and titanium alloys

- NF metals Aluminium and other non-ferrous metals, non ferrous materials

- Hard materials Hardened steel, hardened cast iron materials, chilled cast iron

- Feed direction (Side milling, Ramping)

- Ramping 10°

- Slotting

- Side milling

- Helical drilling

- Emulsion

- Cold air

- Dry machining

- Minimal lubrication

- Inner cooling

Company History:

Family-owned since 1977, HAIMER has grown from a precision parts specialist into a global tooling solutions supplier with operations across Europe, North America, and Asia.
