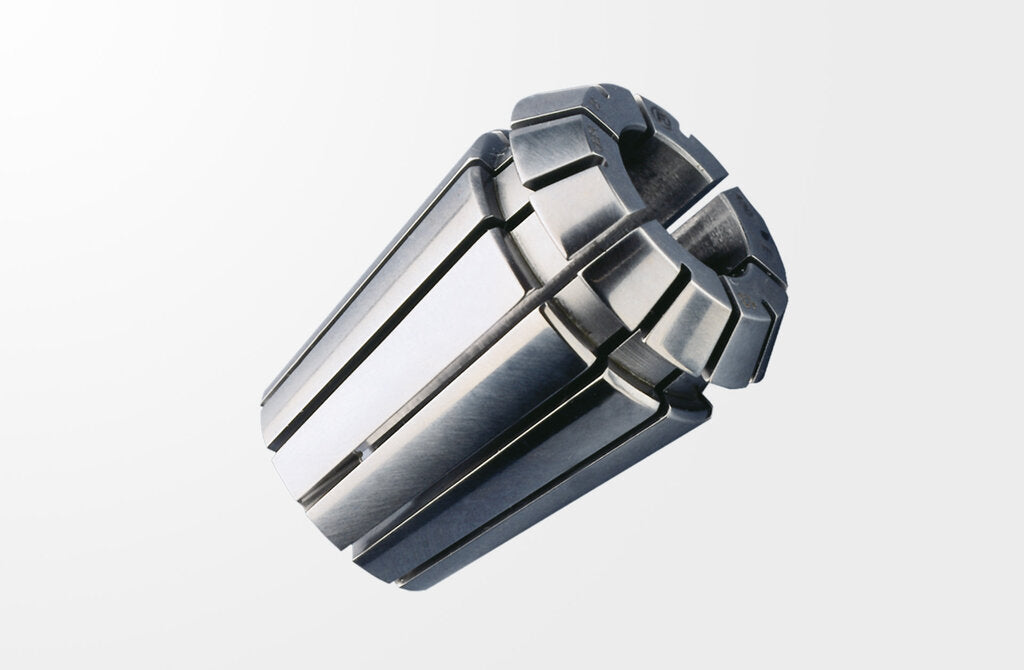

Haimer Collet For ER 32, Clamping Range 12 - 13 mm 81.320.13 (0845493)

Haimer Part Number: 81.320.13

HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Product Features:

- High precision collet ER

- Original HAIMER accessory

- ER collets are indispensable accessories and a key precision component for use in ER collet chucks. They ensure concentric, low-vibration tool clamping and impress with high runout accuracy and reliable holding power - even at high spindle speeds and under demanding cutting conditions.

- Manufactured according to ISO 15488 (formerly DIN 6499), ER collets are available in numerous sizes and clamping ranges and are perfectly matched to ER collet chucks. They are therefore ideal for precise machining, high process reliability and maximum versatility in CNC applications.

- Standard: ISO 15488

- Function: High-precision tool clamping

- Area of use: For ER collet chucks of all manufacturers

- Application: Milling operations

- Benefit: Machining under demanding conditions

- High polished finish for extra accuracy and long life, especially when clamped in HAIMER ER collet chucks

- Superior clamping strength

- Runout accuracy 5 μm

-

Background Information:

The ER tool holder system was invented by Fritz Weber, founder of Rego-Fix, and released in 1972. The ER-type system was originally used as a broom head to handle interface! The R in "ER" stands for Rego-Fix, and represents the company's modification to common "E" collet design of the early 20th century. Specifically, the modification was adding a groove to the collet which keeps it captive in the nut while installing/removing; eliminating the problem of collets getting stuck in the holders. Upon patent expiry the system was standardized in 1993 under DIN 6499 and is today the most recognizable and commonly used collet system worldwide.

The classic ER interface, tried and true.

Company History:

Family-owned since 1977, HAIMER has grown from a precision parts specialist into a global tooling solutions supplier with operations across Europe, North America, and Asia.
